DOWODatasheet (PDF)

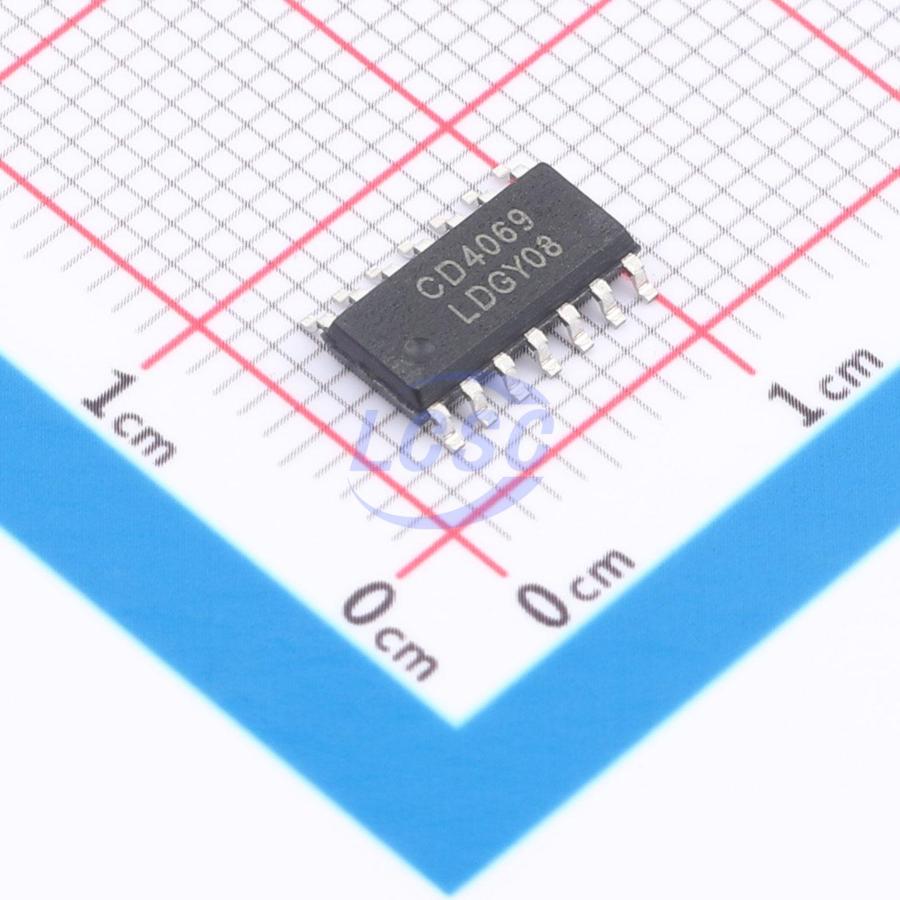

CD4069-DW
StandardCMOS 3V~15V 32ns@15V,50pF 1uA 6 SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- DOWO
- Manufacturer part #
- CD4069-DW
- Store part #
- C47355699
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C47355699
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.75 | ₹97.50 |
| 100+ | ₹7.67 | ₹767.00 |
| 300+ | ₹6.64 | ₹1,992.00 |
| 2,500+ | ₹5.99 | ₹14,975.00 |
| 5,000+ | ₹5.38 | ₹26,900.00 |
| 10,000+ | ₹5.07 | ₹50,700.00 |
10 × ₹9.75
₹97.50
excl. GST
₹115.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4069-DW
₹97.50 for 10 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 4000
- Voltage - Supply
- 3V~15V
- Propagation Delay
- 32ns@15V,50pF
- Output Logic Level - Low
- 50mV
- Input Logic Level - Low
- 1V;2V;2.5V
- Input Logic Level - High
- 4V;8V;12.5V
- Operating Temperature
- -20℃~+85℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.6mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 18mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.247 g
Overview
The CD4069 consists of six CMOS inverter circuits, each operating independently with high noise immunity and drive capability. Under normal operation, VDD is typically connected to the power supply and VSS to ground; any unused inputs must be tied to VDD, VSS, or other inputs. This device is suited for general-purpose inverter applications that do not require medium-power TTL driving or logic level translation. The CD4069 is available in SOP14 and DIP14 packages.
Applications
- Logic inversion
- Pulse shaping
- Oscillator
- High input impedance amplifier
Key features
- Wide operating voltage range: 3~15V
- Standardized symmetrical output characteristics
- Fast output response
- Low quiescent current: IDD < 1μA
