DDF

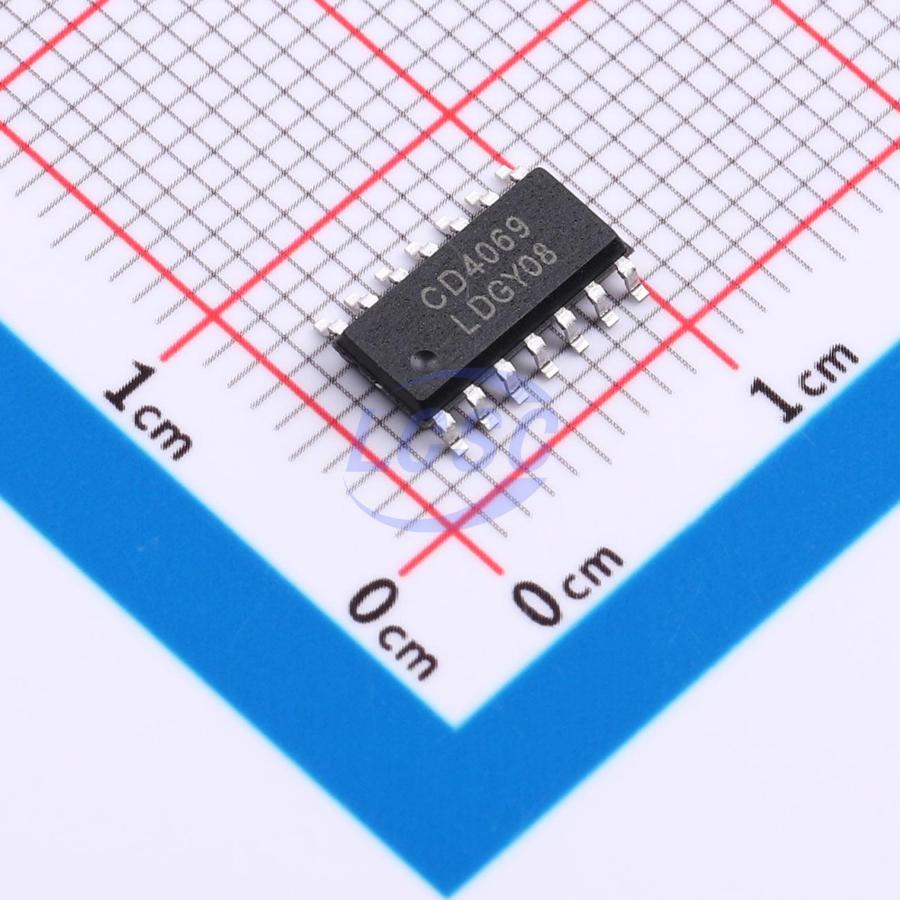

CD4069-SOP-14

3V~15V 1uA 6 SOP-14 Gates and Inverters

SOP-14RoHSActive

Manufacturer: DDF
Manufacturer part #: CD4069-SOP-14
Store part #: C53199161
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,420 in stock

#C53199161

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
10+	₹9.19	₹91.90
100+	₹7.24	₹724.00
300+	₹6.24	₹1,872.00
2,500+	₹5.52	₹13,800.00
5,000+	₹4.92	₹24,600.00
10,000+	₹4.63	₹46,300.00

Quantity (min 10, multiples of 10)

10 × ₹9.19

₹91.90

excl. GST

₹108.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4069-SOP-14

₹91.90 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Logic Family: CD4
Voltage - Supply: 3V~15V
Output Logic Level - Low: 50mV
Input Logic Level - Low: 1V;2V;2.5V
Input Logic Level - High: 4V;8V;12.5V
Operating Temperature: -20℃~+85℃
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 3.6mA
Number of Channels: 6

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.247 g

Overview

The CD4069 consists of six independent CMOS inverter circuits, each featuring high noise immunity and drive capability. Under normal operation, VDD is connected to the power supply and VSS to ground; unused inputs must be tied to VDD, VSS, or other input pins. It is suitable for general-purpose inverter applications that do not require medium-power TTL drive or logic level translation. The device is available in SOP14 and DIP14 packages.
