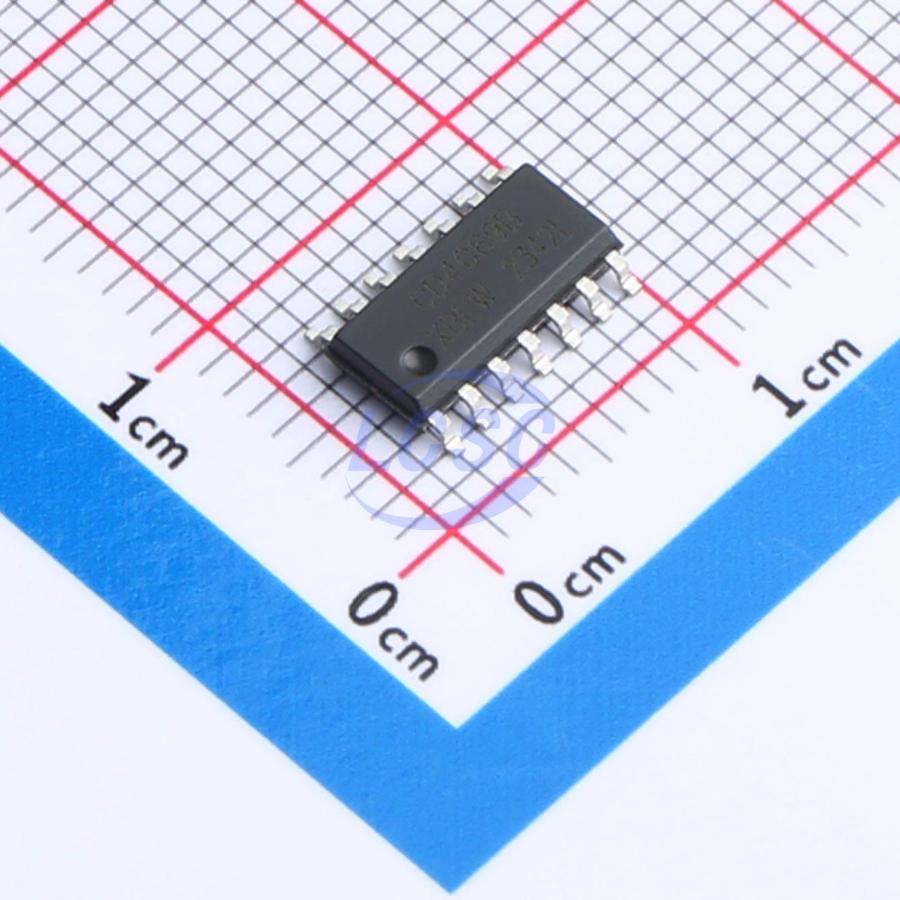

CD4069BDTR(XBLW)
3V~15V 30ns 1uA 6 SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Hex Inverter
- Manufacturer
- XBLW
- Manufacturer part #
- CD4069BDTR(XBLW)
- Store part #
- C20612521
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,465 in stock
#C20612521
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.81 | ₹59.05 |
| 50+ | ₹9.23 | ₹461.50 |
| 150+ | ₹7.93 | ₹1,189.50 |
| 500+ | ₹6.96 | ₹3,480.00 |
| 2,500+ | ₹6.19 | ₹15,475.00 |
| 5,000+ | ₹5.80 | ₹29,000.00 |
5 × ₹11.81
₹59.05
excl. GST
₹69.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4069BDTR(XBLW)
₹59.05 for 5 + GST
Specifications
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 30ns
- Input Logic Level - Low
- 2V
- Input Logic Level - High
- 8V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 9.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.26 g
Overview
The CD4069 is a general purpose hexunbuffered inverter. Each inverter has a single stage. It operates over a recommended VDD power supply range of 3V to 15V referenced to Vss (usually ground). Unused inputs must be connected to VDD, Vss, or another input.
Applications
- Logic inversion
- Pulse shaping
- Oscillators
- High-input-impedance amplifiers
Key features
- Wide supply voltage range from 3V to 15V
- Fully static operation 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics Specified from -40℃ to +125℃
- Packaging information: DIP14/SOP14/TSSOP14
