JSMSEMIDatasheet (PDF)

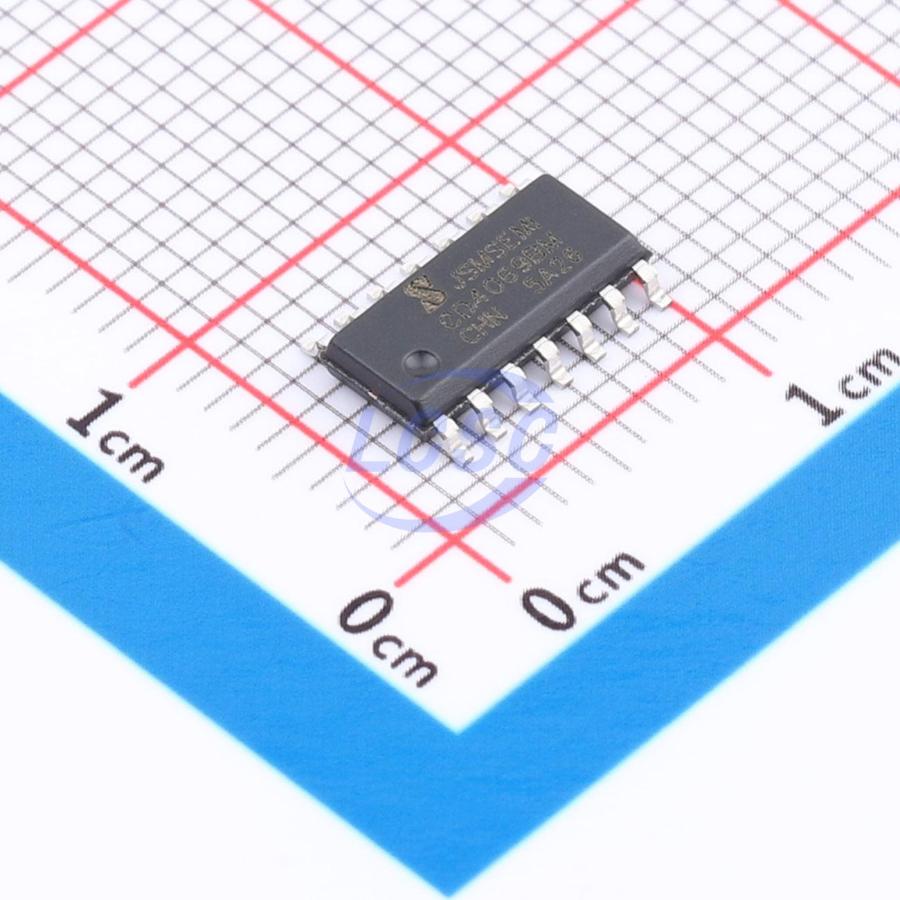

CD4069BM-JSM
StandardCMOS 3V~15V 25ns@15V,50pF 1uA 6 SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- CD4069BM-JSM
- Store part #
- C50202096
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,180 in stock
#C50202096
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.30 | ₹83.00 |
| 100+ | ₹6.52 | ₹652.00 |
| 300+ | ₹5.64 | ₹1,692.00 |
| 2,500+ | ₹4.97 | ₹12,425.00 |
| 5,000+ | ₹4.45 | ₹22,250.00 |
| 10,000+ | ₹4.18 | ₹41,800.00 |
10 × ₹8.30
₹83.00
excl. GST
₹97.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4069BM-JSM
₹83.00 for 10 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 4000B
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 25ns@15V,50pF
- Input Logic Level - Low
- 1V;2V;2.5V
- Input Logic Level - High
- 4V;8V;12.5V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 6
- Current - Output High(IOH)
- 2mA
- Current - Output Low(IOL)
- 1.7mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
CD4069 is a general-purpose hex inverter, with each inverter featuring a single-stage structure. The recommended operating supply voltage VDD ranges from 3V to 15V (relative to VSS, typically ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range: 3V to 15V
- Fully static operation
- Available in 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Specified operating temperature range: -40℃ to +125℃
- Package options: DIP14, SOP14, TSSOP14
