UTC

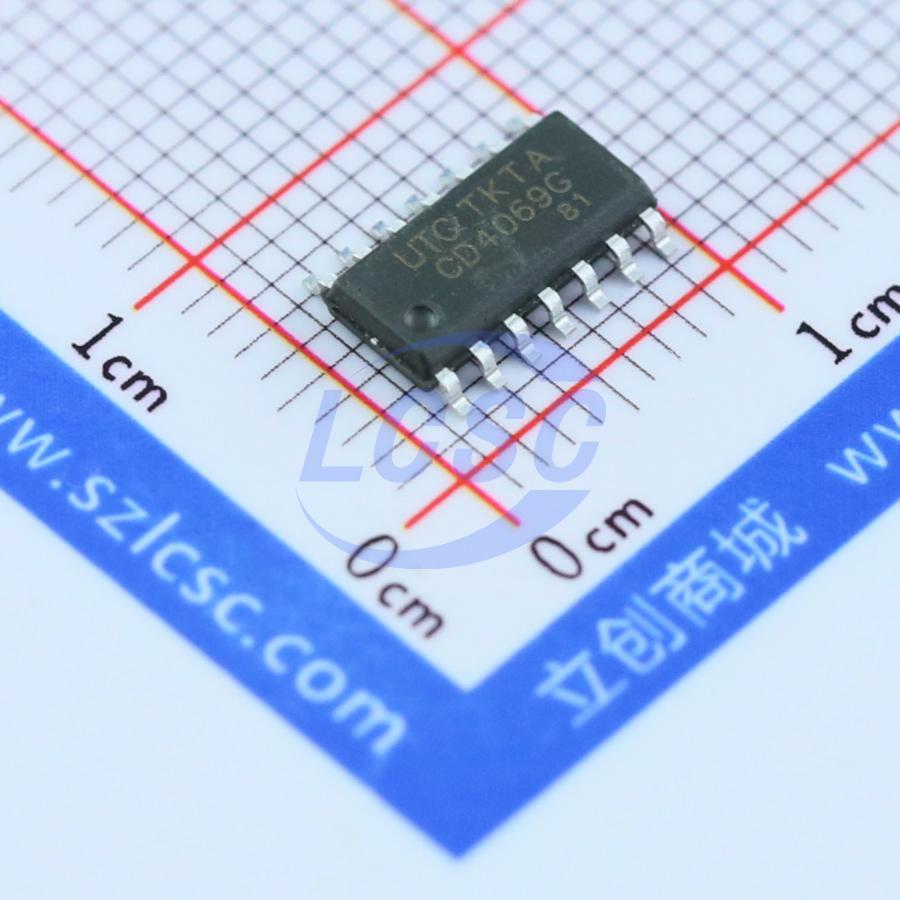

CD4069G-S14-R

3V~15V 60ns@5V,50pF 4uA 6 SOP-14 Gates and Inverters

SOP-14RoHSActive

CMOS IC Inverter Circuit

Manufacturer: UTC
Manufacturer part #: CD4069G-S14-R
Store part #: C91444
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,470 in stock

#C91444

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹13.72	₹68.60
50+	₹10.69	₹534.50
150+	₹9.18	₹1,377.00
500+	₹8.04	₹4,020.00
2,500+	₹7.14	₹17,850.00
5,000+	₹6.68	₹33,400.00

Quantity (min 5, multiples of 5)

5 × ₹13.72

₹68.60

excl. GST

₹80.95 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4069G-S14-R

₹68.60 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~15V
Output Logic Level - Low: 50mV
Propagation Delay: 60ns@5V,50pF
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 4V;8V;12V
Input Logic Level - Low: 1V;2V;3V
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 4uA
Number of Channels: 6
Current - Output High(IOH): 880uA;2.25mA;8.8mA
Current - Output Low(IOL): 880uA;2.25mA;8.8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.348 g

Overview

The UTC CD4069 is a CMOS IC with six inverter circuits and designed for using of wide power supply operating range, low power consumption, high noise immunity, and symmetric controlled rise and fall times. The IC is capable of ESD protection by diode clamps to VDD and VSS.
