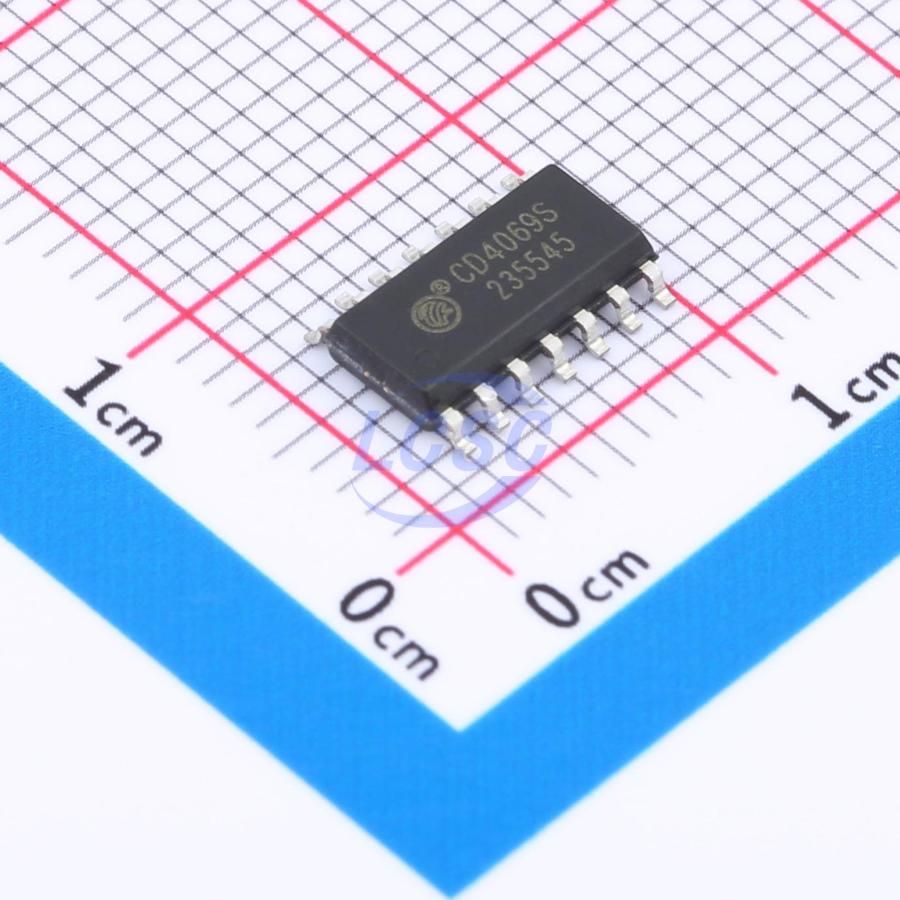

CD4069S
StandardCMOS 3V~15V 27ns@15V,51pF 4uA 6 SOP-14 Gates and Inverters
SOP-14RoHSActive
CMOS inverter
- Manufacturer
- GR
- Manufacturer part #
- CD4069S
- Store part #
- C19818875
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,525 in stock
#C19818875
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.40 | ₹37.00 |
| 50+ | ₹6.50 | ₹325.00 |
| 150+ | ₹6.05 | ₹907.50 |
| 500+ | ₹5.70 | ₹2,850.00 |
| 2,500+ | ₹5.44 | ₹13,600.00 |
| 4,000+ | ₹5.29 | ₹21,160.00 |
5 × ₹7.40
₹37.00
excl. GST
₹43.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4069S
₹37.00 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- CD4
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 27ns@15V,51pF
- Operating Temperature
- 0℃~+60℃
- Input Logic Level - High
- 4V;8V;12V
- Input Logic Level - Low
- 1V;2V;3V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 10mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.09 g
Overview
CD4069 is a low-power, wide supply voltage range inverter designed with advanced CMOS technology. It integrates six independent inverter circuits internally, featuring high noise immunity and strong drive capability.
Applications
- Digital logic drive, wireless doorbell, industrial control applications
Key features
- Low input current: I_IN ≤ 1uA, @V_IN = VDD = 15V, Ta = 25°C
- Low quiescent current: I_DD ≤ 4uA, @VDD = 15V, Ta = 25°C
- Wide operating voltage range: 3.0V to 15.0V
- Package types: DIP14, SOP14
