HGSEMIDatasheet (PDF)

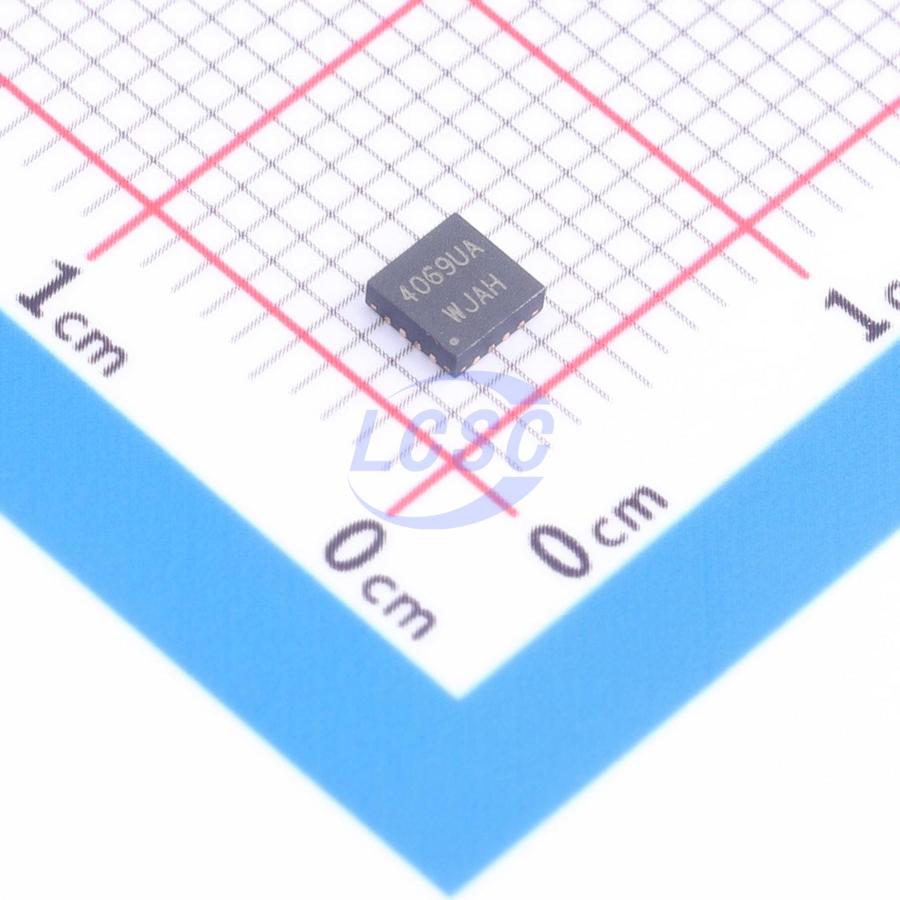

CD4069UALQ/TR
StandardCMOS 3V~15V 1uA 6 QFN-16(3x3) Gates and Inverters
QFN-16(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4069UALQ/TR
- Store part #
- C51953511
- Package / case
- QFN-16(3x3)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,660 in stock
#C51953511
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.93 | ₹64.65 |
| 50+ | ₹11.40 | ₹570.00 |
| 150+ | ₹10.64 | ₹1,596.00 |
| 500+ | ₹10.07 | ₹5,035.00 |
| 2,500+ | ₹9.62 | ₹24,050.00 |
| 5,000+ | ₹9.38 | ₹46,900.00 |
5 × ₹12.93
₹64.65
excl. GST
₹76.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CD4069UALQ/TR
₹64.65 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- CD4
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 0V~50mV
- Input Logic Level - Low
- 1V;2V;2.5V
- Operating Temperature
- 0℃~+70℃
- Input Logic Level - High
- 4V;8V;12.5V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.6mA
- Number of Channels
- 6
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.171 g
Overview
This device consists of six CMOS inverter circuits, primarily used as general-purpose inverters for circuits that do not require power TTL driving or logic level conversion functions.
Applications
- Logic inverter
- Oscillator
- High input impedance amplifier
Key features
- Standardized symmetrical output characteristics
- Supply voltage: 3~15 V
- Input voltage: 0~VDD
- Fast output response
- Low quiescent current: IDD < 1 μA
