CD4069UBPWR
3V~18V 50ns@15V,50pF 1uA 6 TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive

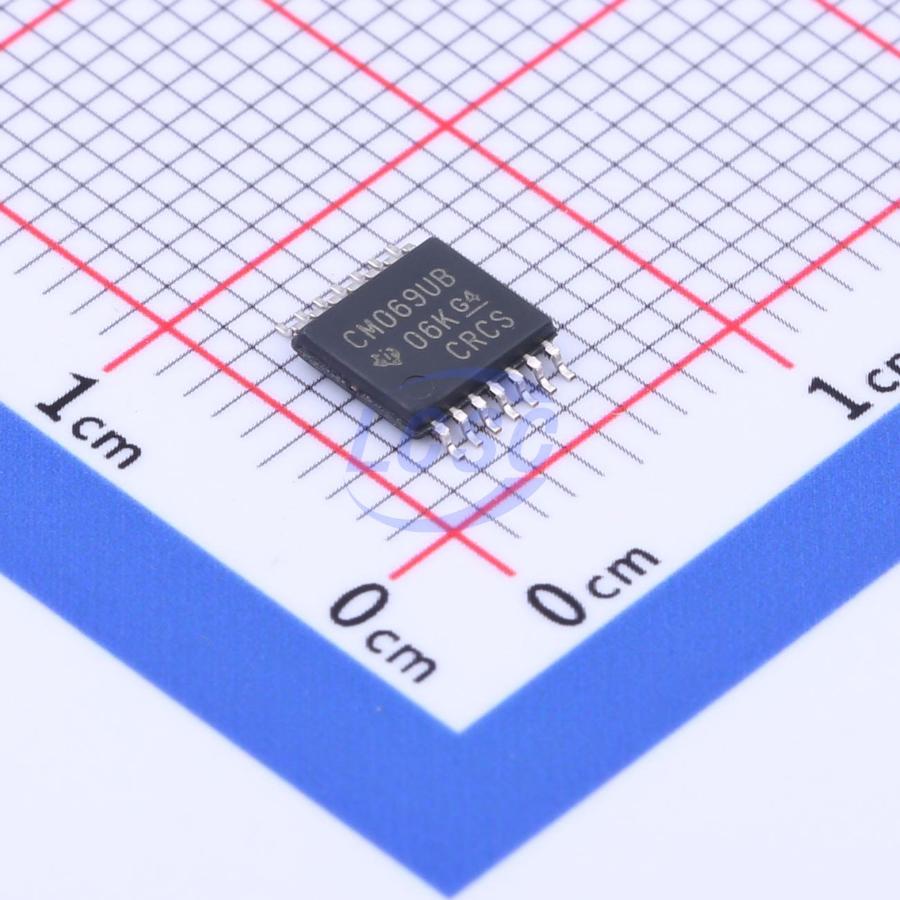

CMOS Hex Inverter
- Manufacturer
- TI
- Manufacturer part #
- CD4069UBPWR
- Store part #
- C913843
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,564 in stock
#C913843
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.37 | ₹74.37 |
| 10+ | ₹57.84 | ₹578.40 |
| 30+ | ₹50.88 | ₹1,526.40 |
| 100+ | ₹42.19 | ₹4,219.00 |
| 500+ | ₹38.27 | ₹19,135.00 |
| 1,000+ | ₹35.88 | ₹35,880.00 |
1 × ₹74.37
₹74.37
excl. GST
₹87.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD4069UBPWR
₹74.37 for 1 + GST
Specifications
- Logic Family
- 4000B
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 50ns@15V,50pF
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1V~2.5V
- Input Logic Level - High
- 4V~12.5V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
The CD4069UB device consists of six CMOS inverter circuits. These devices are intended for all inverter applications where the medium-power TTL driving capability and logic-level conversion functions of circuits such as the CD4009 and CD4049 hex inverters and buffers are not required.
Applications
- Logic inversion
- Pulse shaping
- Oscillator
- High input impedance amplifier
Key features
- Standardized symmetrical output characteristics
- Medium-speed operation: tPHL, tPLH = 30ns, 10V (typical)
- 100% tested for quiescent current at 20V
- Maximum input current of 1μA at 18V over full package temperature range, 100nA at 18V and 25℃
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of B Series CMOS Devices"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4069UBMT/TR#C7432391HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 215 | ₹18.38 · 215 in stock | View |
