XBLW

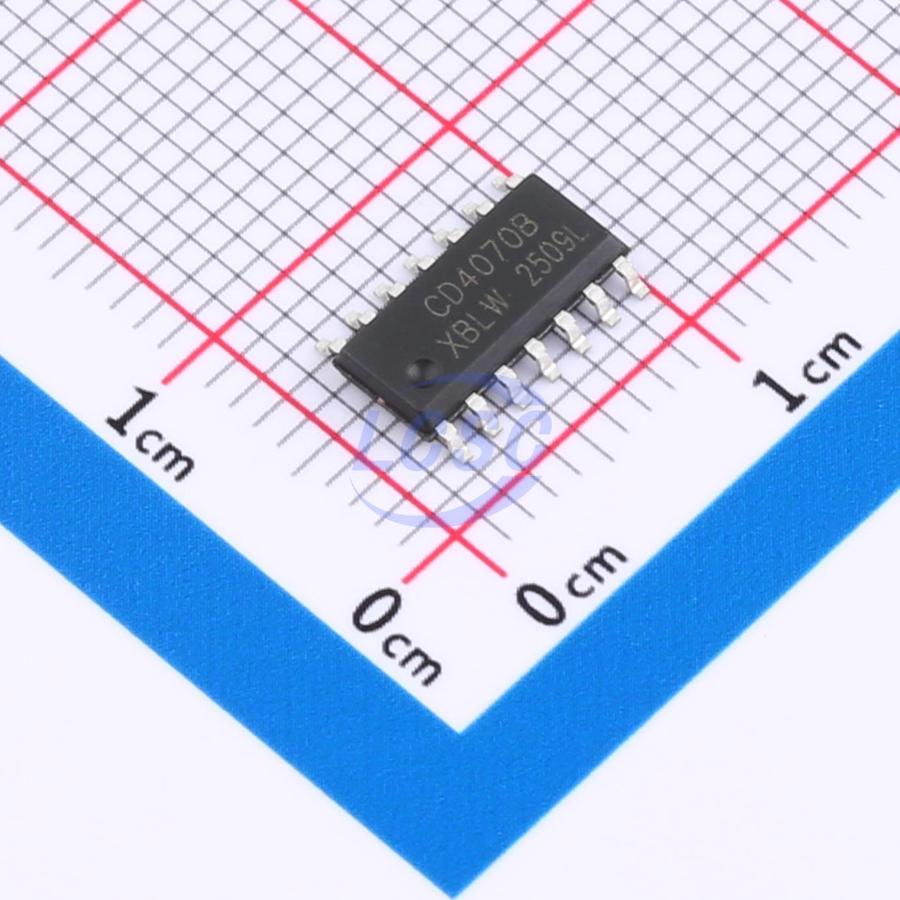

CD4070BDTR(XBLW)

XOR Gate IC 4 Channel SOP-14

SOP-14ROHS CompliantActive

Quad 2-input Exclusive-or Gate

Manufacturer: XBLW
Manufacturer part #: CD4070BDTR(XBLW)
Store part #: C48971050
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,270 in stock

#C48971050

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.72	₹83.60
50+	₹13.22	₹661.00
150+	₹11.47	₹1,720.50
500+	₹10.16	₹5,080.00
2,500+	₹9.10	₹22,750.00
5,000+	₹8.59	₹42,950.00

Quantity (min 5, multiples of 5)

5 × ₹16.72

₹83.60

excl. GST

₹98.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4070BDTR(XBLW)

₹83.60 for 5 + GST

Specifications

Logic Family: CD4 Series
Input Logic Level - Low: 4V
Input Logic Level - High: 11V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 15V
Quiescent Current(Iq): 1uA
Voltage - Supply: 3V~15V
Current - Output High(IOH): 6.8mA
Number of Channels: 4;2
Output Logic Level - Low: 50mV
Propagation Delay: 100ns@15V,50pF
Current - Output Low(IOL): 6.8mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.266 g

Overview

CD4070 is a quad 2-input XOR gate. The outputs are fully buffered for the highest noise immunity and are insensitive to output impedance modes. The device operates over a recommended VDD supply voltage range of 3V to 15V (with respect to VSS, typically ground). Unused inputs must be connected to VDD, VSS, or another input.
