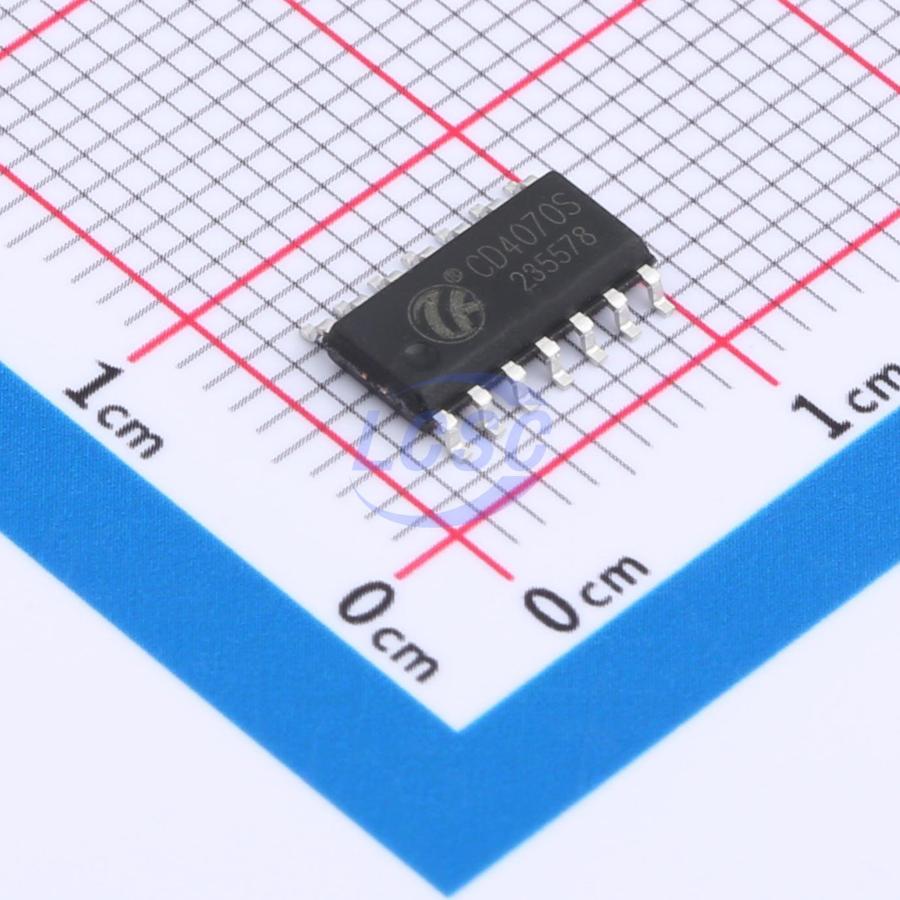

CD4070S

XOR Gate IC 4 Channel SOP-14

SOP-14RoHSActive

Quad 2-input XOR gate logic integrated circuit

Manufacturer: GR
Manufacturer part #: CD4070S
Store part #: C22357617
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,830 in stock

#C22357617

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
5+	₹17.44	₹87.20
50+	₹13.79	₹689.50
150+	₹11.96	₹1,794.00
500+	₹10.58	₹5,290.00
2,500+	₹9.49	₹23,725.00
4,000+	₹8.94	₹35,760.00

Quantity (min 5, multiples of 5)

5 × ₹17.44

₹87.20

excl. GST

₹102.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

CD4070S

₹87.20 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: 0℃~+60℃
Input Logic Level - High: 3.5V~11V
Logic Family: CD4 Series
Input Logic Level - Low: 1.5V~4V
Output Logic Level - High: 4.95V~14.95V
Quiescent Current(Iq): 10nA
Voltage - Supply: 3V~18V
Current - Output High(IOH): 14mA
Number of Channels: 4;2
Propagation Delay: 30ns@15V,47pF
Output Logic Level - Low: 50mV
Current - Output Low(IOL): 28mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.15 g

Overview

CD4070 is an integrated logic IC featuring four 2-input XOR gates, designed using advanced CMOS technology.

Applications

Logic circuits
Industrial control applications
Other application areas

Key features

Low input current: I_IN ≤ 1uA, @ V_IN = VDD = 15V, Ta = 25°C
Low quiescent power consumption: typical I_DD = 0.01uA, @ VDD = 15V, Ta = 25°C
Package types: DIP14, SOP14
Wide operating voltage range: 3.0V ~ 15.0V
4 dual-input XOR gates

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	CD4030S#C22357614GR · SOP-14	GR	SOP-14	100	₹24.09 · 100 in stock	View
