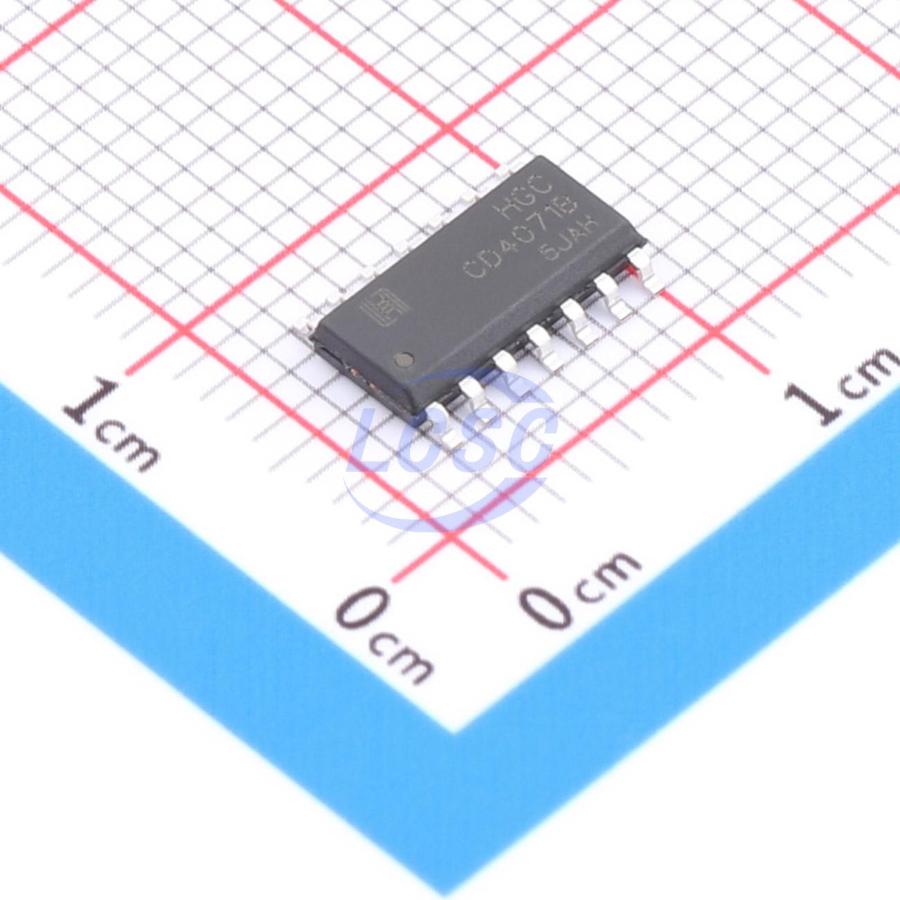

HANSCHIP semiconductorDatasheet (PDF)
CD4071BDRG
3V~18V SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- CD4071BDRG
- Store part #
- C51292180
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,355 in stock
#C51292180
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.07 | ₹50.35 |
| 50+ | ₹8.00 | ₹400.00 |
| 150+ | ₹6.97 | ₹1,045.50 |
| 500+ | ₹6.20 | ₹3,100.00 |
| 2,500+ | ₹5.60 | ₹14,000.00 |
| 5,000+ | ₹5.28 | ₹26,400.00 |
5 × ₹10.07
₹50.35
excl. GST
₹59.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4071BDRG
₹50.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 4000B Series
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Current - Output Low(IOL)
- 20mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.299 g
Overview
CD4071B is a quad 2-input OR gate. These gate circuits are monolithic CMOS ICs constructed using N-channel and P-channel enhancement-mode transistors. They feature equal source and sink current capability. The device also provides buffered outputs, improving transfer characteristics by delivering extremely high gain. All inputs are buffered.
Key features
- Wide operating voltage range: VDD = 3V ~ 18V
- Fully static operation
- 5V, 10V, 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on all inputs and outputs
- Operating temperature range: -40°C ~ +85°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CD4071BDRG4#C51292181HANSCHIP semiconductor · SOP-14 | HANSCHIP semiconductor | SOP-14 | 3,400 | ₹9.59 · 3,400 in stock | View | |
