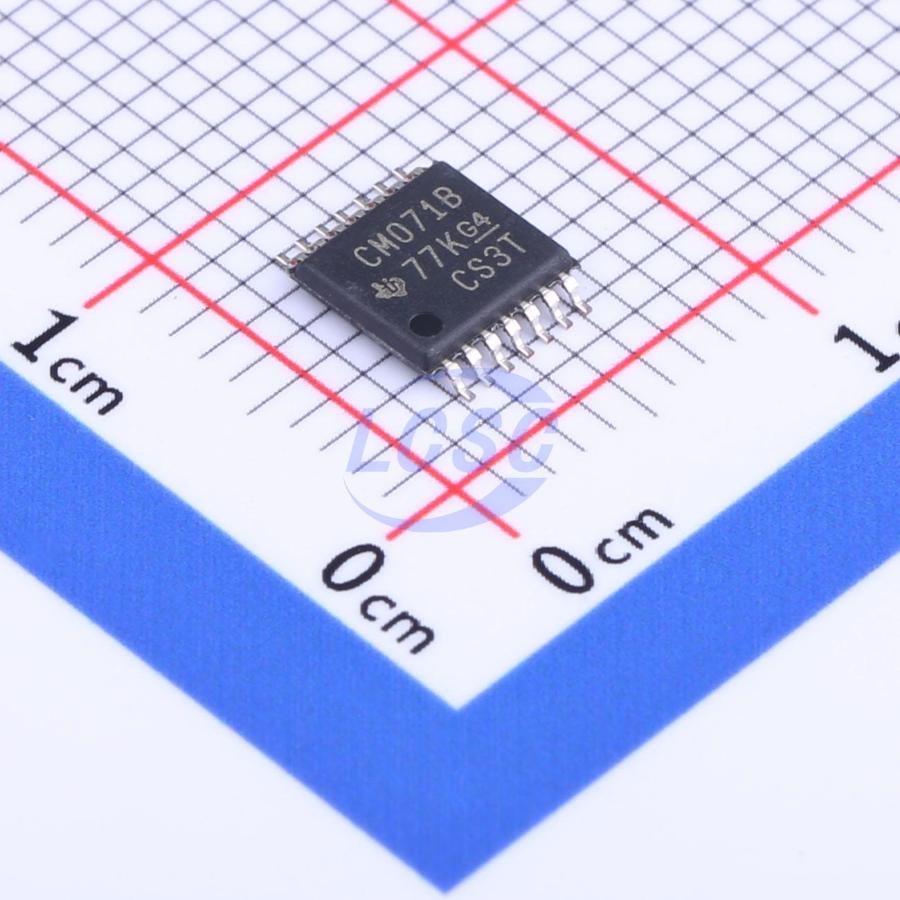

CD4071BPWR
1uA 3V~18V 45ns@15V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
CMOS OR Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4071BPWR
- Store part #
- C2682168
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,835 in stock
#C2682168
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.32 | ₹76.32 |
| 10+ | ₹64.62 | ₹646.20 |
| 30+ | ₹56.16 | ₹1,684.80 |
| 100+ | ₹49.44 | ₹4,944.00 |
| 500+ | ₹47.27 | ₹23,635.00 |
| 1,000+ | ₹45.97 | ₹45,970.00 |
1 × ₹76.32
₹76.32
excl. GST
₹90.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD4071BPWR
₹76.32 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Input Logic Level - Low
- 1.5V~4V
- Operating Temperature
- -55℃~+125℃
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 45ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.204 g
Overview
CD4071B,CD4072B,and CD4075B OR gates provide the system designer with direct implementation of the positive- logic OR function and supplement the existing family of CMOS gates.
Applications
- Implementation of positive logic OR functions in digital system design
Key features
- Medium- Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10V
- 100% tested for quiescent current at 20V
- Maximum input current of 1μA at 18V over full package - temperature range; 100 nA at 18V and 25℃
- Standardized, symmetrical output characteristics
- Noise margin (over full package temperature range): 1V at VDD = 5V, 2V at VDD = 10V, 2.5V at VDD = 15V
- 5 - V, 10 - V, and 15 - V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No.13B, Standard Specifications for Description of δ'B' Series CMOS Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4071BPWRG-HX#C53241910HANSCHIP semiconductor · TSSOP-14 | HANSCHIP semiconductor | TSSOP-14 | 1,875 | ₹12.30 · 1,875 in stock | View |
| CD4071DMT/TR-HG#C53374707HGSEMI · TSSOP-14 | HGSEMI | TSSOP-14 | 2,490 | ₹17.21 · 2,490 in stock | View | |
 | MC14071BDTR2G#C184680onsemi · TSSOP-14 | onsemi | TSSOP-14 | On request | ₹35.17 · 0 in stock | View |
| NLV14071BDTR2G#C904790onsemi · TSSOP-14 | onsemi | TSSOP-14 | On request | Price on request | Quote | |
