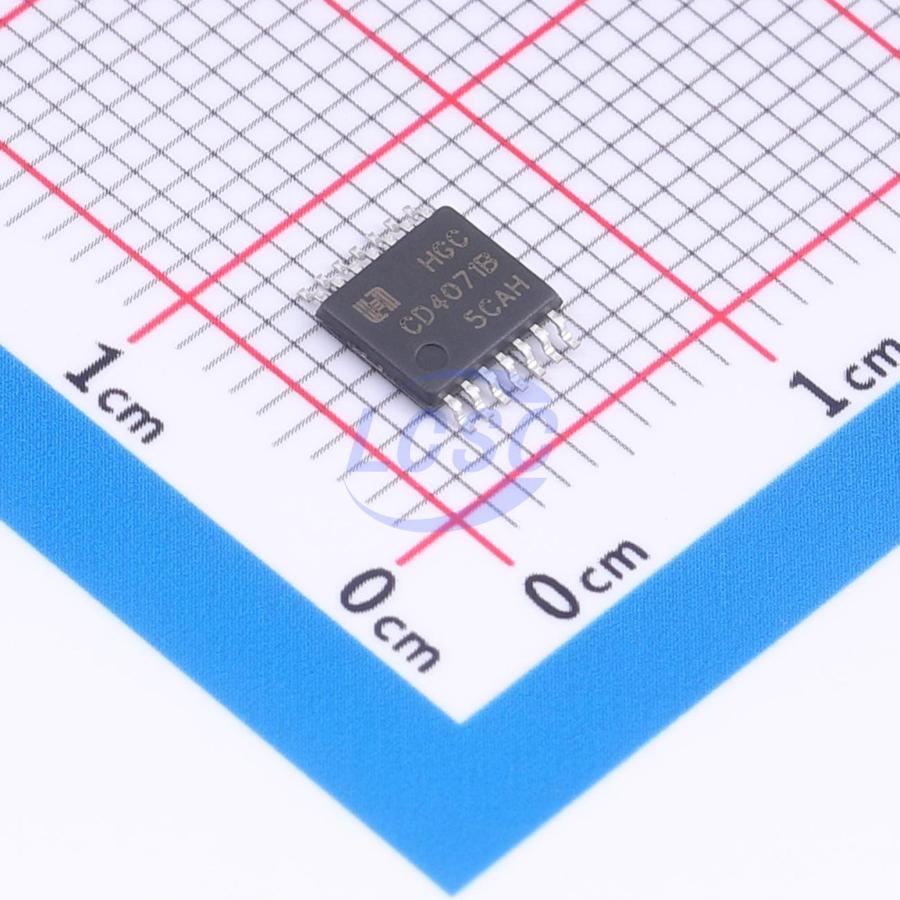

HANSCHIP semiconductorDatasheet (PDF)
CD4071BPWRG-HX
3V~18V 2uA TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- CD4071BPWRG-HX
- Store part #
- C53241910
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,875 in stock
#C53241910
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.30 | ₹61.50 |
| 50+ | ₹9.79 | ₹489.50 |
| 150+ | ₹8.53 | ₹1,279.50 |
| 500+ | ₹7.58 | ₹3,790.00 |
| 2,500+ | ₹6.83 | ₹17,075.00 |
| 5,000+ | ₹6.46 | ₹32,300.00 |
5 × ₹12.30
₹61.50
excl. GST
₹72.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4071BPWRG-HX
₹61.50 for 5 + GST
Specifications
- Voltage - Supply
- 3V~18V
- Output Logic Level - Low
- 50mV
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 20mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.329 g
Overview
CD4071B is a quad 2-input OR gate. These quad gate circuits are monolithic complementary metal-oxide semiconductor (CMOS) ICs constructed with N-channel and P-channel enhancement-mode transistors. They feature equal source and sink current capability. The devices incorporate buffered outputs that improve transfer characteristics by providing very high gain. All inputs are buffered.
Key features
- Wide operating voltage range: VDD = 3 V ~ 18 V
- Fully static operation
- 5V, 10V, 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40℃ ~ +85℃
