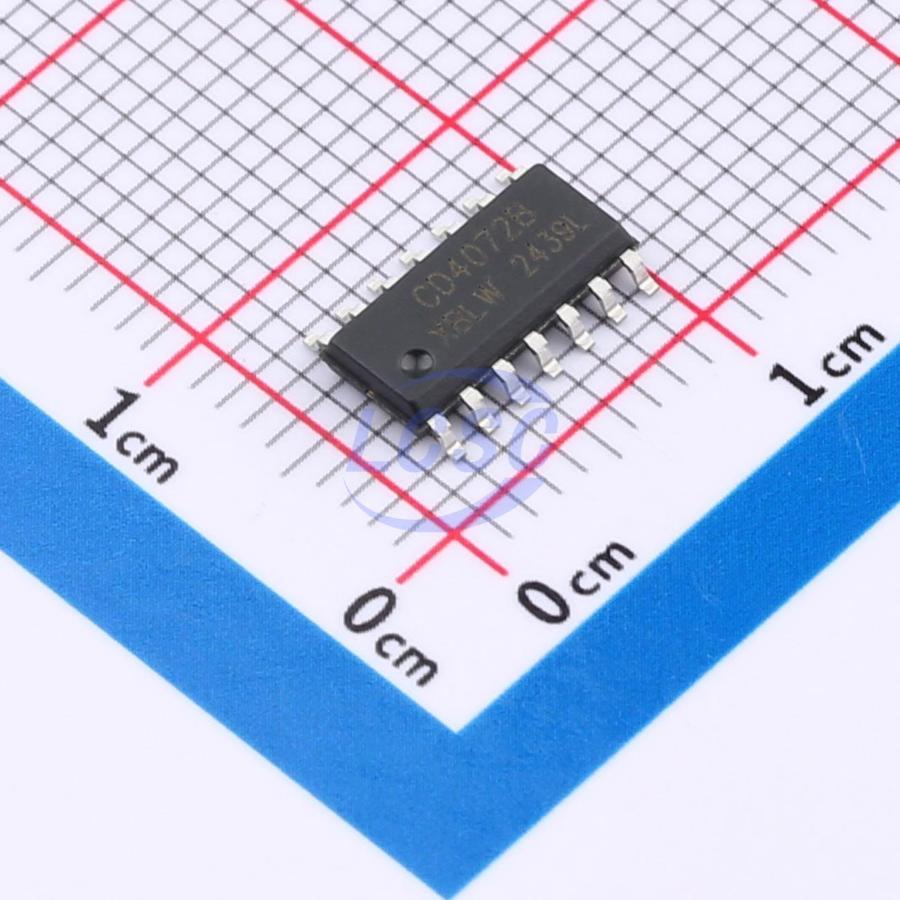

CD4072BDTR(XBLW)
1uA 3V~15V 45ns@15V,50pF SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Dual 4-input Or Gate
- Manufacturer
- XBLW
- Manufacturer part #
- CD4072BDTR(XBLW)
- Store part #
- C42376979
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,685 in stock
#C42376979
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.03 | ₹125.15 |
| 50+ | ₹19.38 | ₹969.00 |
| 150+ | ₹16.96 | ₹2,544.00 |
| 500+ | ₹13.93 | ₹6,965.00 |
| 2,500+ | ₹12.59 | ₹31,475.00 |
| 5,000+ | ₹11.79 | ₹58,950.00 |
5 × ₹25.03
₹125.15
excl. GST
₹147.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4072BDTR(XBLW)
₹125.15 for 5 + GST
Specifications
- Logic Family
- CD4
- Input Logic Level - Low
- 1.5V;3V;4V
- Input Logic Level - High
- 3.5V;7V;11V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V~14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 6.8mA
- Propagation Delay
- 45ns@15V,50pF
- Output Logic Level - Low
- 0V~50mV
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.268 g
Overview
The CD4072 provides the positive dual 4-input OR function. The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance. It operates over a recommended V_DD power supply range of 3V to 15V referenced to V_SS (usually ground). Unused inputs must be connected to VoD, V_SS, or another input.
Key features
- Wide supply voltage range from 3V to 15V
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Inputs and outputs are protected against electrostatic effects
- Specified from -40℃ to +125℃
- Packaging information: DIP14/SOP14/TSSOP14
