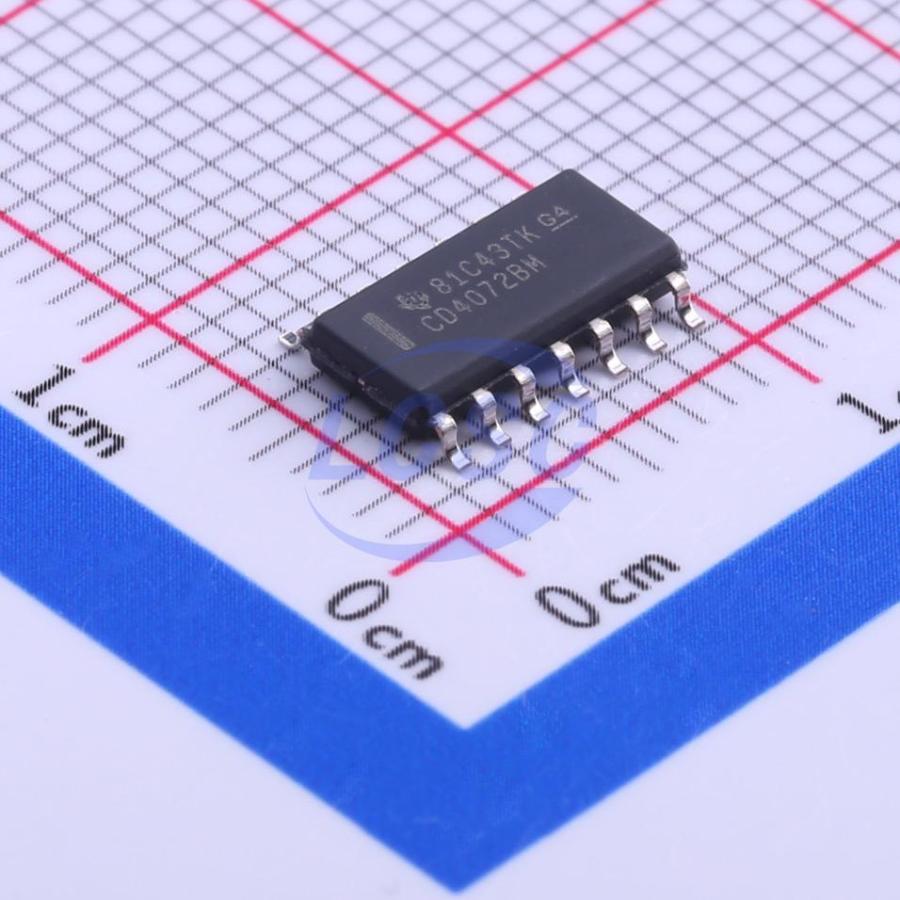

CD4072BM96
1uA 3V~18V 45ns@15V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
CMOS OR Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4072BM96
- Store part #
- C68527
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,520 in stock
#C68527
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹81.59 | ₹407.95 |
| 50+ | ₹65.21 | ₹3,260.50 |
| 150+ | ₹58.19 | ₹8,728.50 |
| 500+ | ₹49.43 | ₹24,715.00 |
| 2,500+ | ₹39.56 | ₹98,900.00 |
| 5,000+ | ₹37.22 | ₹1,86,100.00 |
5 × ₹81.59
₹407.95
excl. GST
₹481.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4072BM96
₹407.95 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1.5V~4V
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 3.4mA
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 45ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.264 g
Overview
OR gates provide the system designer with direct implementation of the positive- logic OR function and supplement the existing family of CMOS gates.
Key features
- Medium- Speed Operation - tPLH, tPHL = 60 ns (typ.) at VDD = 10V
- 100% tested for quiescent current at 20V
- Maximum input current of 1μA at 18V over full package- temperature range; 100nA at 18V and 25℃
- Standardized, symmetrical output characteristics
- Noise margin (over full package temperature range): 1V at VDD = 5V, 3V at VDD = 10V, 2.5V at VDD = 15V
- 5 - V, 10 - V and 15 - V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No.13B, Standard Specifications for Description of δ'B' Series CMOS Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4072BDTR(XBLW)#C42376979XBLW · SOP-14 | XBLW | SOP-14 | 1,685 | ₹25.03 · 1,685 in stock | View |
| CD4072BMT#C2866571TI · SOIC-14 | TI | SOIC-14 | On request | ₹97.76 · 0 in stock | View | |
