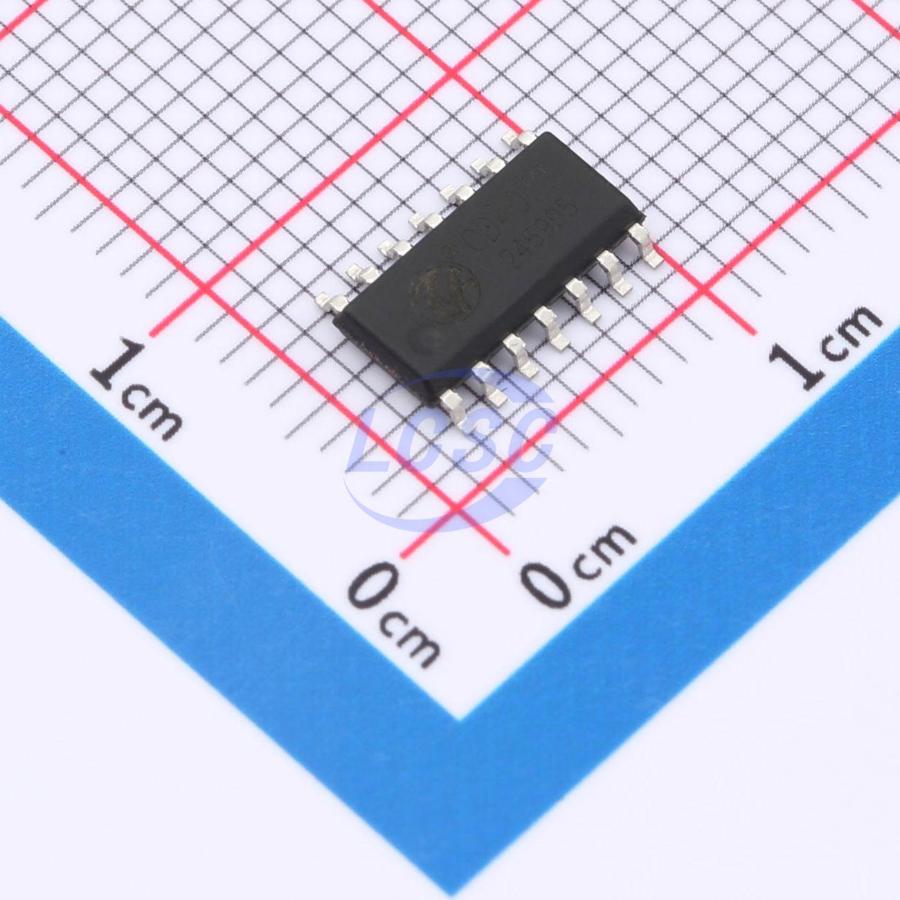

CD4072NS14ARDQ
1uA SOP-14 Gates and Inverters
SOP-14RoHSActive
CMOS Dual 4-Input OR Gate
- Manufacturer
- GR
- Manufacturer part #
- CD4072NS14ARDQ
- Store part #
- C27975228
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,530 in stock
#C27975228
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.11 | ₹80.55 |
| 50+ | ₹14.35 | ₹717.50 |
| 150+ | ₹13.60 | ₹2,040.00 |
| 500+ | ₹12.66 | ₹6,330.00 |
| 2,500+ | ₹11.40 | ₹28,500.00 |
| 5,000+ | ₹11.15 | ₹55,750.00 |
5 × ₹16.11
₹80.55
excl. GST
₹95.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4072NS14ARDQ
₹80.55 for 5 + GST
Specifications
- Logic Family
- CD4
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 14mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Current - Output Low(IOL)
- 30mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.236 g
Overview
CD4072 OR gate provides the system designer with direct implementation of the positivelogic OR function and supplement the existing family of CMOS gates.
Key features
- Standardized symmetrical output characteristics
- 100% tested for quiescent current at 18V
- Maximum input current of 1μA at 18V and 25℃
- 5V, 10V, and 15V parametric ratings
