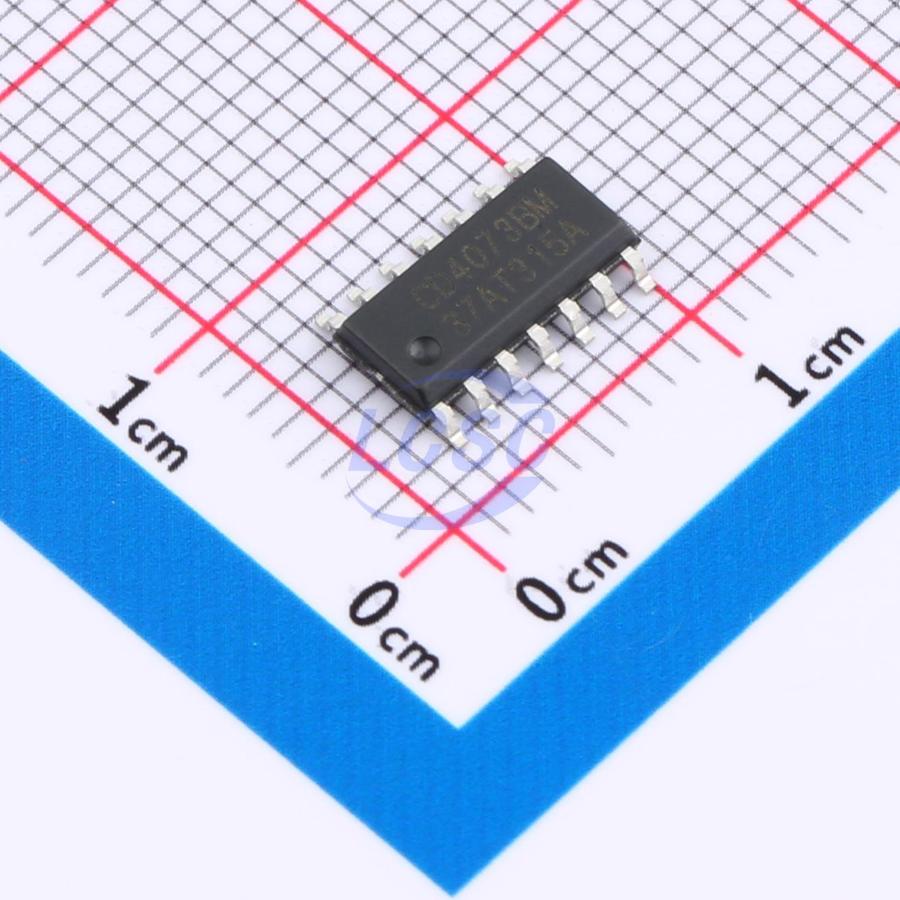

lingxingic

CD4073BM(LX)

1uA 3V~15V 90ns@15V,50pF SOP-14 Gates and Inverters

SOP-14RoHSActive

Triple 3-input And Gate

Manufacturer: lingxingic
Manufacturer part #: CD4073BM(LX)
Store part #: C22390243
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,620 in stock

#C22390243

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
5+	₹17.00	₹85.00
50+	₹15.08	₹754.00
150+	₹14.25	₹2,137.50
500+	₹13.23	₹6,615.00
2,500+	₹12.46	₹31,150.00
4,000+	₹12.18	₹48,720.00

Quantity (min 5, multiples of 5)

5 × ₹17.00

₹85.00

excl. GST

₹100.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CD4073BM(LX)

₹85.00 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Logic Level - High: 3V~15V
Input Logic Level - Low: 1.5V~4V
Operating Temperature: -40℃~+125℃
Logic Family: 4000 Series
Output Logic Level - High: 4.95V~14.95V
Quiescent Current(Iq): 1uA
Voltage - Supply: 3V~15V
Number of Channels: 3;3
Current - Output High(IOH): 6.8mA
Propagation Delay: 90ns@15V,50pF
Output Logic Level - Low: 50mV
Current - Output Low(IOL): 6.8mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.178 g

Overview

The CD4073 is a triple 3-input AND gate. The outputs are fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
