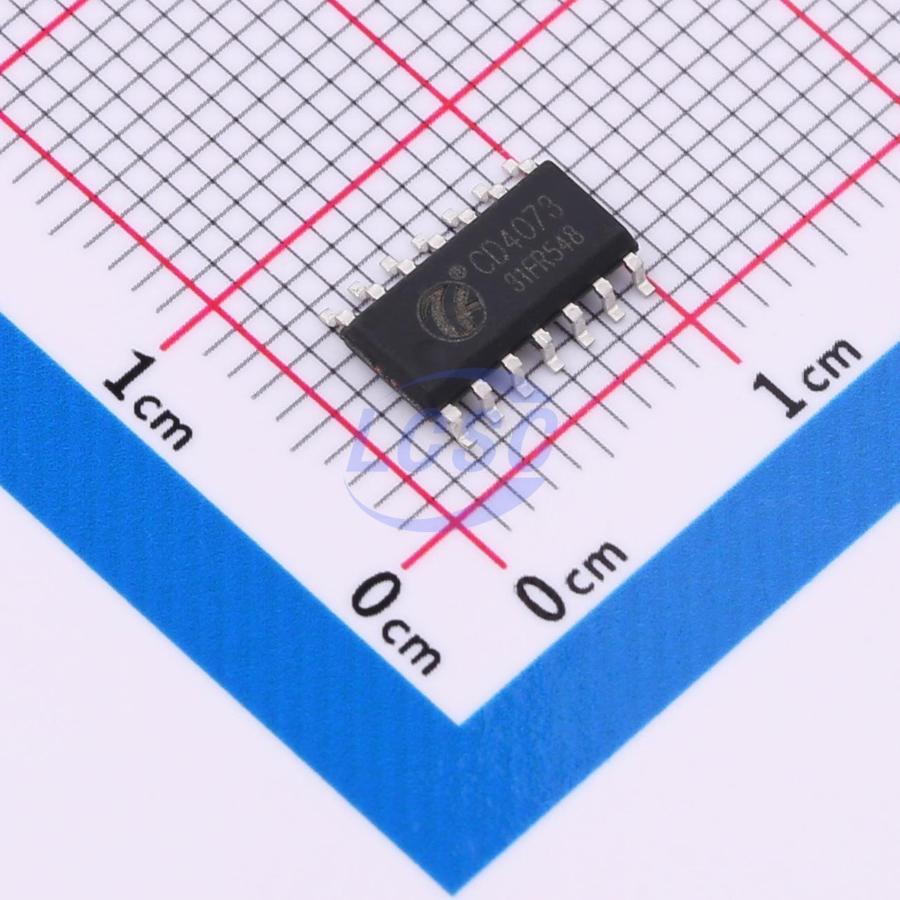

CD4073NS14ARDQ
1uA SOP-14 Gates and Inverters
SOP-14RoHSActive
CMOS Triple 3 Input AND Gate
- Manufacturer
- GR
- Manufacturer part #
- CD4073NS14ARDQ
- Store part #
- C41414566
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,850 in stock
#C41414566
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.60 | ₹68.00 |
| 50+ | ₹11.88 | ₹594.00 |
| 150+ | ₹11.14 | ₹1,671.00 |
| 500+ | ₹10.21 | ₹5,105.00 |
| 2,500+ | ₹9.80 | ₹24,500.00 |
| 4,000+ | ₹9.57 | ₹38,280.00 |
5 × ₹13.60
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4073NS14ARDQ
₹68.00 for 5 + GST
Specifications
- Logic Family
- CD4
- Input Logic Level - Low
- 1.5V;3V;4V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 3.5V~11V
- Output Logic Level - High
- 4.95V~15V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 3;3
- Current - Output High(IOH)
- 10mA
- Output Logic Level - Low
- 0V~50mV
- Current - Output Low(IOL)
- 16mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.268 g
Overview
CD4073 AND gate provides the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates. All inputs and outputs are buffered.
Key features
- Buffered inputs and outputs
- Standardized symmetrical output characteristics
- 100% tested for quiescent current at 18V
- Maximum input current of 1μA at 18V and 25°C
- 5V, 10V, and 15V parametric ratings
