lingxingic

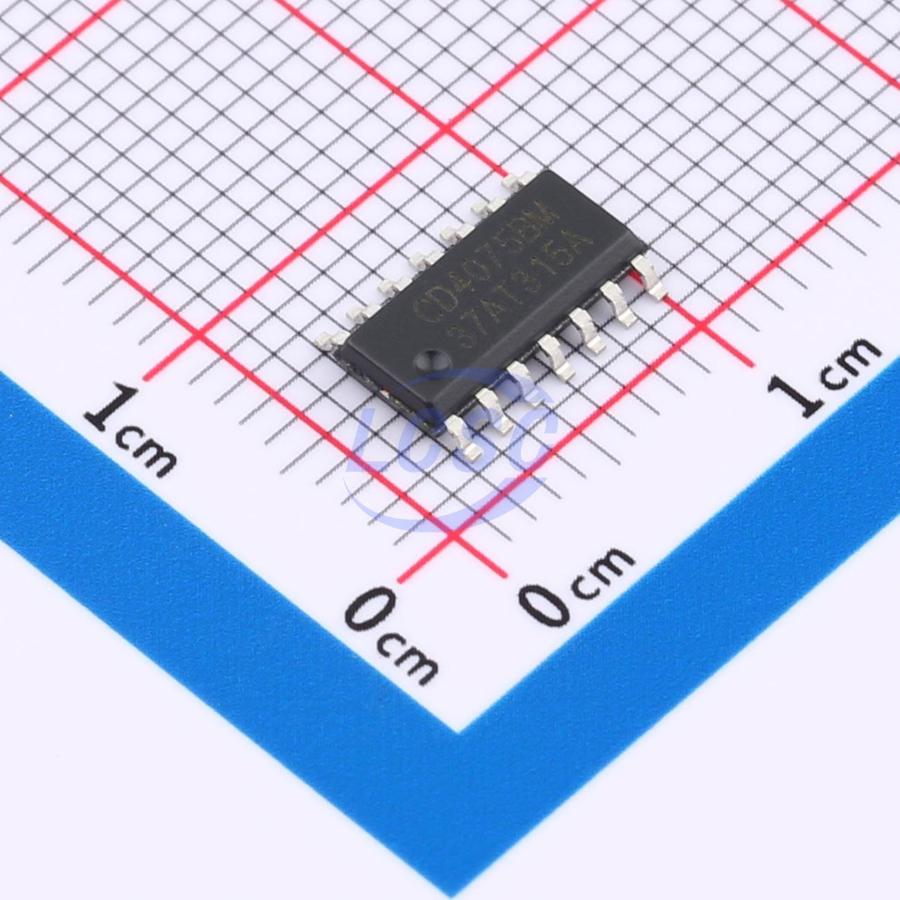

CD4075BM(LX)

1uA 3V~15V 90ns@15V,50pF SOP-14 Gates and Inverters

SOP-14RoHSActive

Triple 3-input Or Gate

Manufacturer: lingxingic
Manufacturer part #: CD4075BM(LX)
Store part #: C32710658
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,295 in stock

#C32710658

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹14.74	₹73.70
50+	₹12.75	₹637.50
150+	₹11.91	₹1,786.50
500+	₹10.84	₹5,420.00
2,500+	₹10.37	₹25,925.00
5,000+	₹10.08	₹50,400.00

Quantity (min 5, multiples of 5)

5 × ₹14.74

₹73.70

excl. GST

₹86.97 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CD4075BM(LX)

₹73.70 for 5 + GST

Specifications

Input Logic Level - High: 3.5V;7V;11V
Input Logic Level - Low: 1.5V;3V;4V
Operating Temperature: -40℃~+125℃
Logic Family: 4000 Series
Output Logic Level - High: 5V;10V;15V
Quiescent Current(Iq): 1uA
Voltage - Supply: 3V~15V
Number of Channels: 3;3
Current - Output High(IOH): 3.4mA
Output Logic Level - Low: 50mV
Propagation Delay: 90ns@15V,50pF
Current - Output Low(IOL): 3.4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.264 g

Overview

The CD4075 provides the positive triple 3-input OR function. The outputs are fully buffered for highest noise immunity and pattern insensitivity of output impedance. It operates over a recommended VDD power supply range of 3V to 15V referenced to GND (usually ground). Unused inputs must be connected to VDD , GND, or another input.
