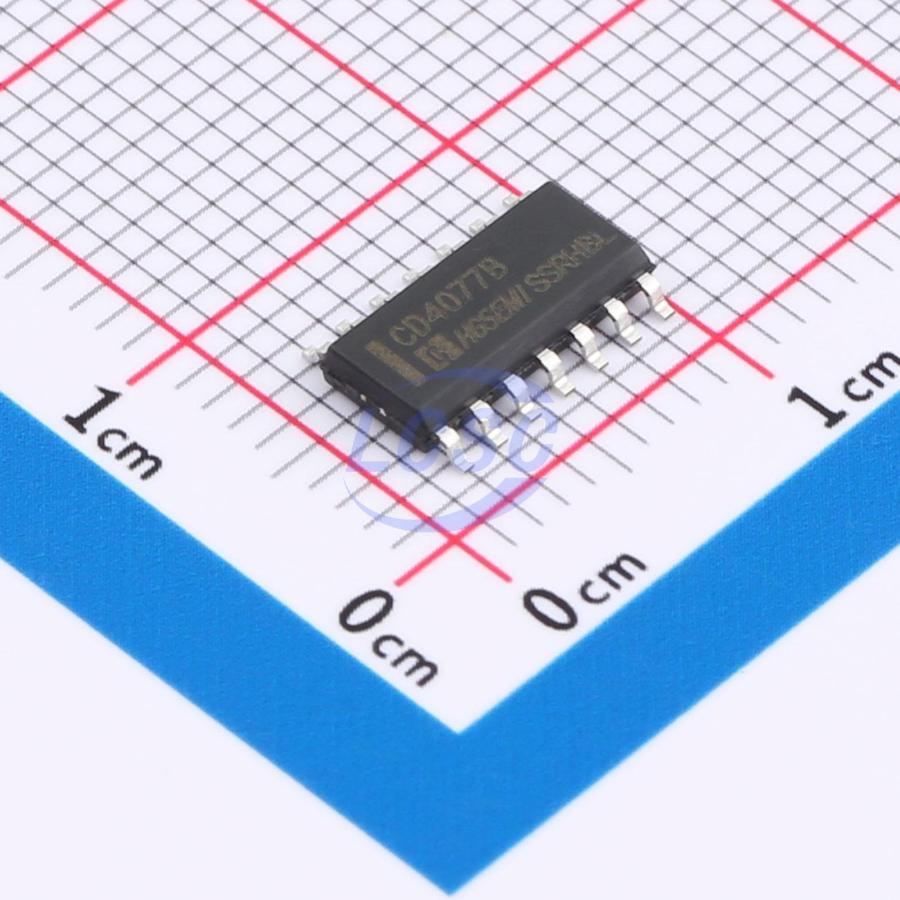

CD4077BM/TR
3V~15V 50ns@15V,50pF SOP-14 Gates and Inverters
SOP-14RoHSActive
Quad 2-Input EXCLUSIVE-NOR Gate
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4077BM/TR
- Store part #
- C7432111
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,385 in stock
#C7432111
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.36 | ₹101.80 |
| 50+ | ₹15.98 | ₹799.00 |
| 150+ | ₹14.12 | ₹2,118.00 |
| 500+ | ₹11.77 | ₹5,885.00 |
| 2,500+ | ₹11.03 | ₹27,575.00 |
| 5,000+ | ₹10.41 | ₹52,050.00 |
5 × ₹20.36
₹101.80
excl. GST
₹120.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4077BM/TR
₹101.80 for 5 + GST
Specifications
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 4000 Series
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 50ns@15V,50pF
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.306 g
