XBLW

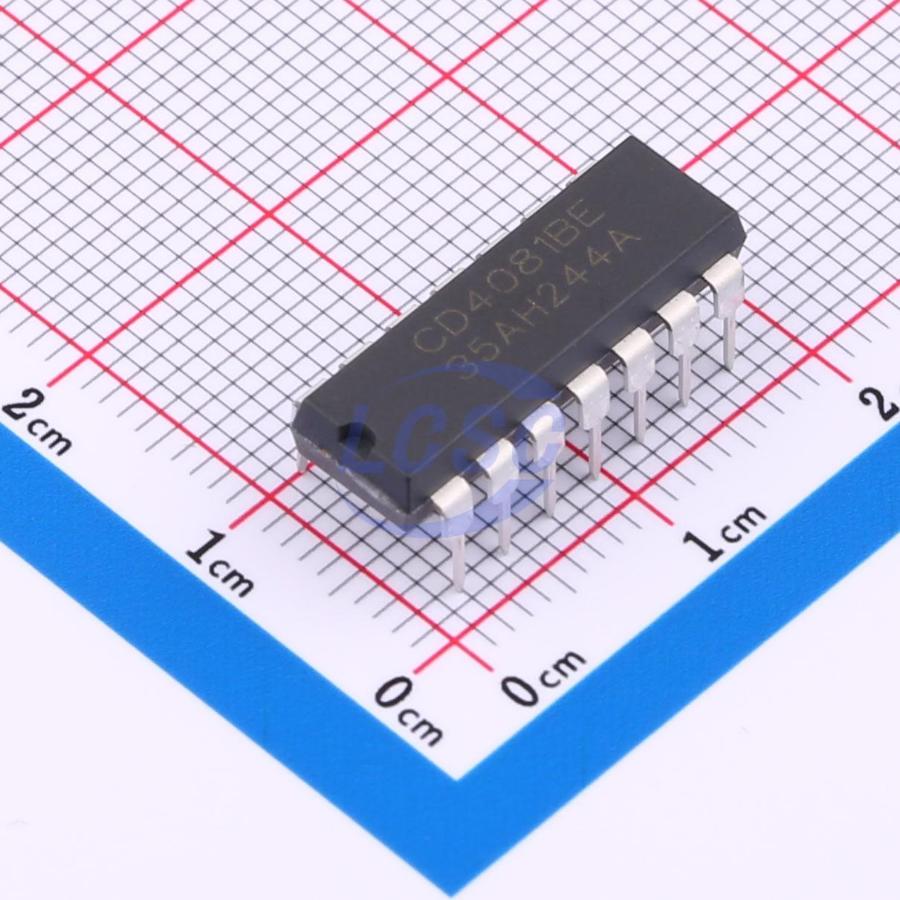

CD4081BE(XBLW)

500nA 3V~15V 60ns DIP-14 Gates and Inverters RoHS

DIP-14ROHS CompliantActive

Quad 2-input And Gate

Manufacturer: XBLW
Manufacturer part #: CD4081BE(XBLW)
Store part #: C18723492
Package / case: DIP-14
Category: Gates and Inverters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,420 in stock

#C18723492

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹27.06	₹135.30
50+	₹21.21	₹1,060.50
150+	₹18.71	₹2,806.50
500+	₹15.57	₹7,785.00
2,000+	₹14.18	₹28,360.00
5,000+	₹13.35	₹66,750.00

Quantity (min 5, multiples of 5)

5 × ₹27.06

₹135.30

excl. GST

₹159.65 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

CD4081BE(XBLW)

₹135.30 for 5 + GST

Specifications

Input Logic Level - Low: 3V
Input Logic Level - High: 3.5V;7V;11V
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 5V
Quiescent Current(Iq): 500nA
Voltage - Supply: 3V~15V
Number of Channels: 4;2
Output Logic Level - Low: 50mV
Propagation Delay: 60ns
Current - Output Low(IOL): 6.8mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.636 g

Overview

The CD4081 is a quad 2-input AND gate. The outputs are fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VoD, VSS, or another input.
