lingxingicDatasheet (PDF)

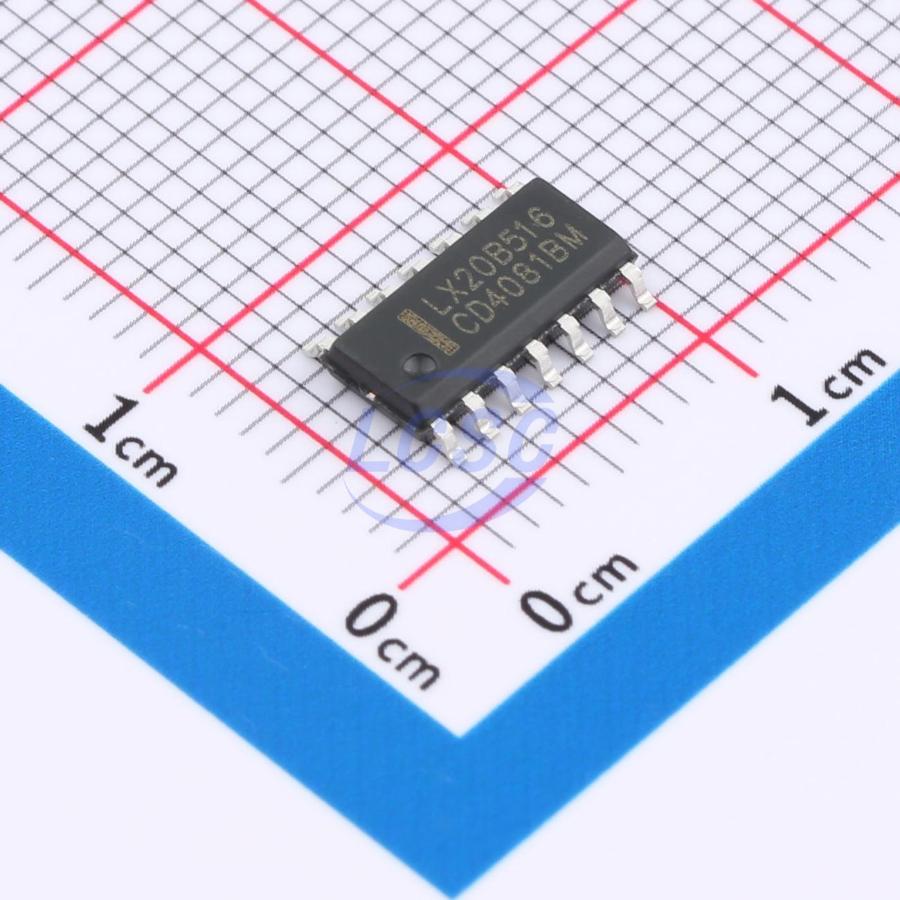

CD4081BM(LX)
AND Gate IC 4 Channel SOP-14
SOP-14RoHSActive
Quad 2-input And Gate
- Manufacturer
- lingxingic
- Manufacturer part #
- CD4081BM(LX)
- Store part #
- C48997711
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,395 in stock
#C48997711
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.39 | ₹76.95 |
| 50+ | ₹12.18 | ₹609.00 |
| 150+ | ₹10.60 | ₹1,590.00 |
| 500+ | ₹9.39 | ₹4,695.00 |
| 2,500+ | ₹8.31 | ₹20,775.00 |
| 4,000+ | ₹7.82 | ₹31,280.00 |
5 × ₹15.39
₹76.95
excl. GST
₹90.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4081BM(LX)
₹76.95 for 5 + GST
Specifications
- Logic Family
- CD4
- Input Logic Level - High
- 3.5V;7V;11V
- Input Logic Level - Low
- 1.5V;3V;4V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~15V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 250ns@5V,50pF;120ns@10V,50pF;90ns@15V,50pF
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
The CD4081 is a quad 2-input AND gate. Its outputs are fully buffered for the highest noise immunity and are insensitive to output impedance variations. It operates over a recommended VDD supply voltage range of 3V to 15V (with respect to VSS, typically ground). Unused inputs must be connected to VDD, VSS, or other inputs.
Key features
- Wide supply voltage range: 3V to 15V
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40°C to +125°C
- Package types: DIP14, SOP14, TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HEF4081BT(LX)#C52261136lingxingic · SOP-14 | lingxingic | SOP-14 | 3,625 | ₹22.72 · 3,625 in stock | View |
