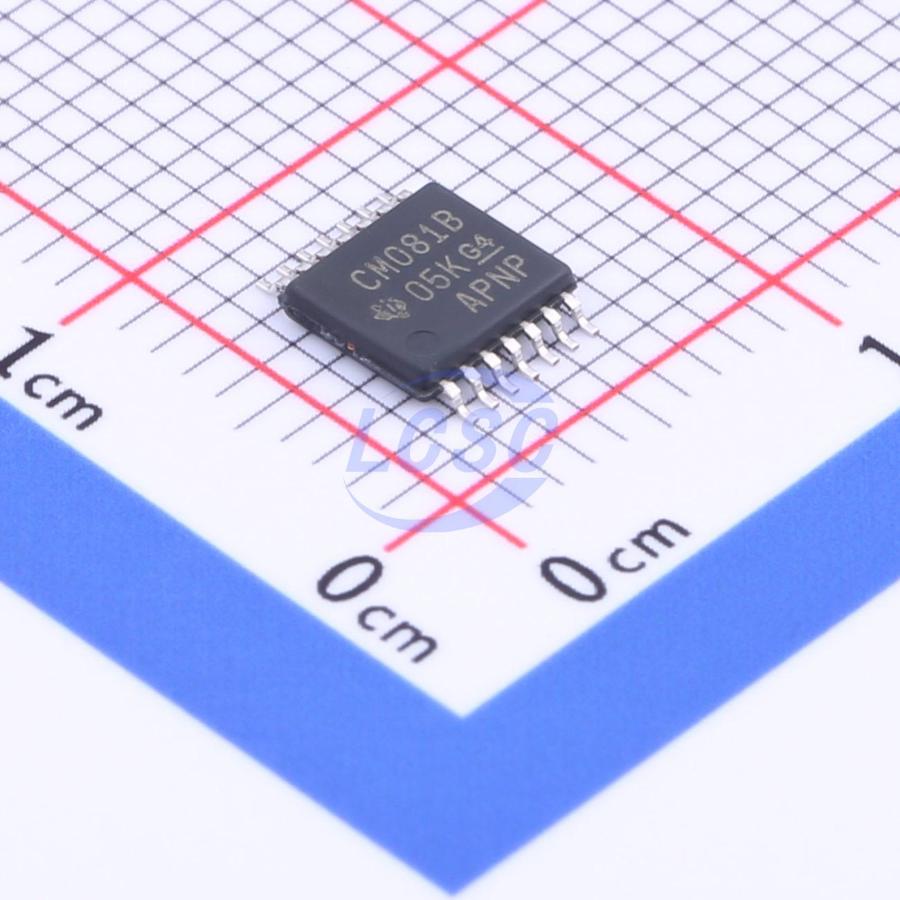

CD4081BPWR
1uA 3V~18V 90ns@15V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
CMOS AND Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4081BPWR
- Store part #
- C2691449
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,253 in stock
#C2691449
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.59 | ₹57.59 |
| 10+ | ₹48.90 | ₹489.00 |
| 30+ | ₹42.60 | ₹1,278.00 |
| 100+ | ₹37.39 | ₹3,739.00 |
| 500+ | ₹35.64 | ₹17,820.00 |
| 1,000+ | ₹34.77 | ₹34,770.00 |
1 × ₹57.59
₹57.59
excl. GST
₹67.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
CD4081BPWR
₹57.59 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1.5V~4V
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Current - Output High(IOH)
- 3.4mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.178 g
Overview
CD4073B, CD4081B and CD. 4082B AND gates, provide the system designer with direct implementation of the AND function and supplement the existing family of CMOS gates.
Key features
- Medium-Speed Operation -- tpLH· tpHL = 80 ns (typ.) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
- Noise margin (full package-temperature range) = 1 V at VDD = 5 V, 2 V at VDD = 10 V, 2.5 V at VDD = 15 V
- Standardized, symmetrical output characteristics
- 5-V, 10-V, and 15-V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Dtscription of 'B' Series CMOs Devices"
