lingxingic

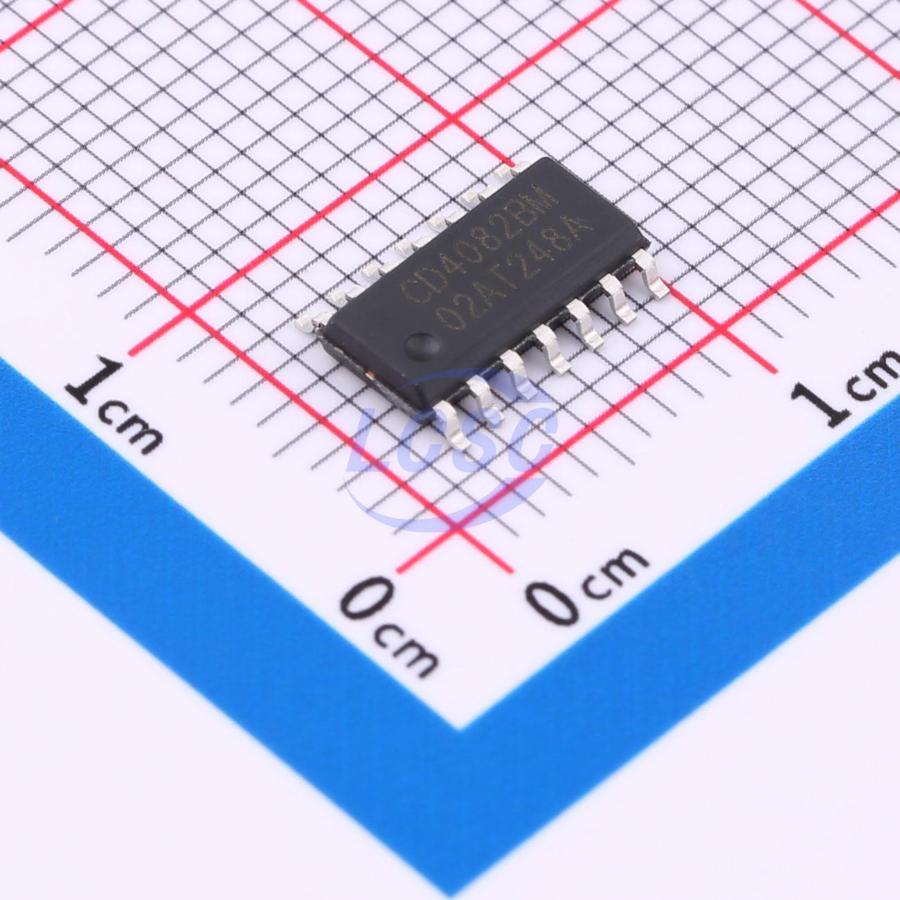

CD4082BM(LX)

1uA 3V~15V 90ns@15V,50pF SOP-14 Gates and Inverters

SOP-14RoHSActive

Dual 4-input And Gate

Manufacturer: lingxingic
Manufacturer part #: CD4082BM(LX)
Store part #: C24833633
Package / case: SOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,310 in stock

#C24833633

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.65	₹133.25
50+	₹21.43	₹1,071.50
150+	₹19.20	₹2,880.00
500+	₹16.42	₹8,210.00
2,500+	₹14.50	₹36,250.00
4,000+	₹13.76	₹55,040.00

Quantity (min 5, multiples of 5)

5 × ₹26.65

₹133.25

excl. GST

₹157.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CD4082BM(LX)

₹133.25 for 5 + GST

Specifications

Input Logic Level - High: 3.5V~11V
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 1.5V~4V
Logic Family: 4000 Series
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 1uA
Voltage - Supply: 3V~15V
Number of Channels: 2;4
Current - Output High(IOH): 3.4mA
Output Logic Level - Low: 50mV
Propagation Delay: 90ns@15V,50pF
Current - Output Low(IOL): 3.4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.186 g

Overview

The CD4082 is a dual 4-input AND gate. The outputs are fully buffered for highest noise immunity and pattern insensitivity to output impedance variations. It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
