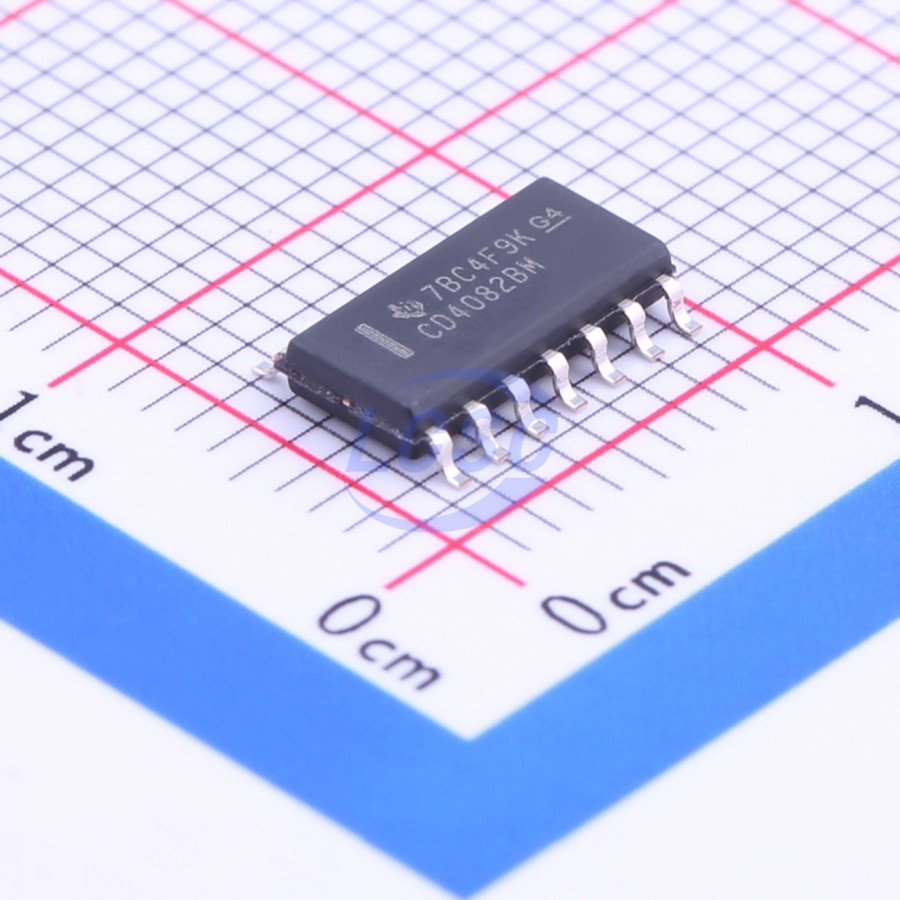

CD4082BM96
AND Gate IC 2 Channel SOIC-14
SOIC-14ROHS3 CompliantActive
CMOS AND Gates
- Manufacturer
- TI
- Manufacturer part #
- CD4082BM96
- Store part #
- C193801
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,089 in stock
#C193801
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹78.93 | ₹78.93 |
| 10+ | ₹64.18 | ₹641.80 |
| 30+ | ₹56.81 | ₹1,704.30 |
| 100+ | ₹49.44 | ₹4,944.00 |
| 500+ | ₹40.99 | ₹20,495.00 |
| 1,000+ | ₹38.61 | ₹38,610.00 |
1 × ₹78.93
₹78.93
excl. GST
₹93.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4082BM96
₹78.93 for 1 + GST
Specifications
- Input Logic Level - High
- 3.5V~11V
- Operating Temperature
- -55℃~+125℃
- Input Logic Level - Low
- 1.5V~4V
- Logic Family
- 4000B Series
- Output Logic Level - High
- 4.95V;9.95V;14.95V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 3V~18V
- Number of Channels
- 2;4
- Current - Output High(IOH)
- 3.4mA
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 90ns@15V,50pF
- Current - Output Low(IOL)
- 3.4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.264 g
Overview
Key features
- Medium-speed operation: tPLH = tpHL = 80 ns (typical) at VDD = 10 V
- 100% tested for quiescent current at 20 V
- Maximum input current of 1 μA at 18 V over full package temperature range; 100 nA at 18 V and 25°C
- Noise margin (full package temperature range): 1 V at VDD = 5 V; 2 V at VDD = 10 V; 2.5 V at VDD = 15 V
- Standardized, symmetrical output characteristics
- 5 V, 10 V, and 15 V parametric ratings
- Meets all requirements of JEDEC Tentative Standard No. 13B, "Standard Specifications for Description of 'B' Series CMOS Devices"
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC14082BDG#C897258onsemi · SOIC-14 | onsemi | SOIC-14 | 45 | ₹95.38 · 45 in stock | View |
| NLV14082BDG#C604202onsemi · SOIC-14 | onsemi | SOIC-14 | On request | ₹20.81 · 0 in stock | View | |
