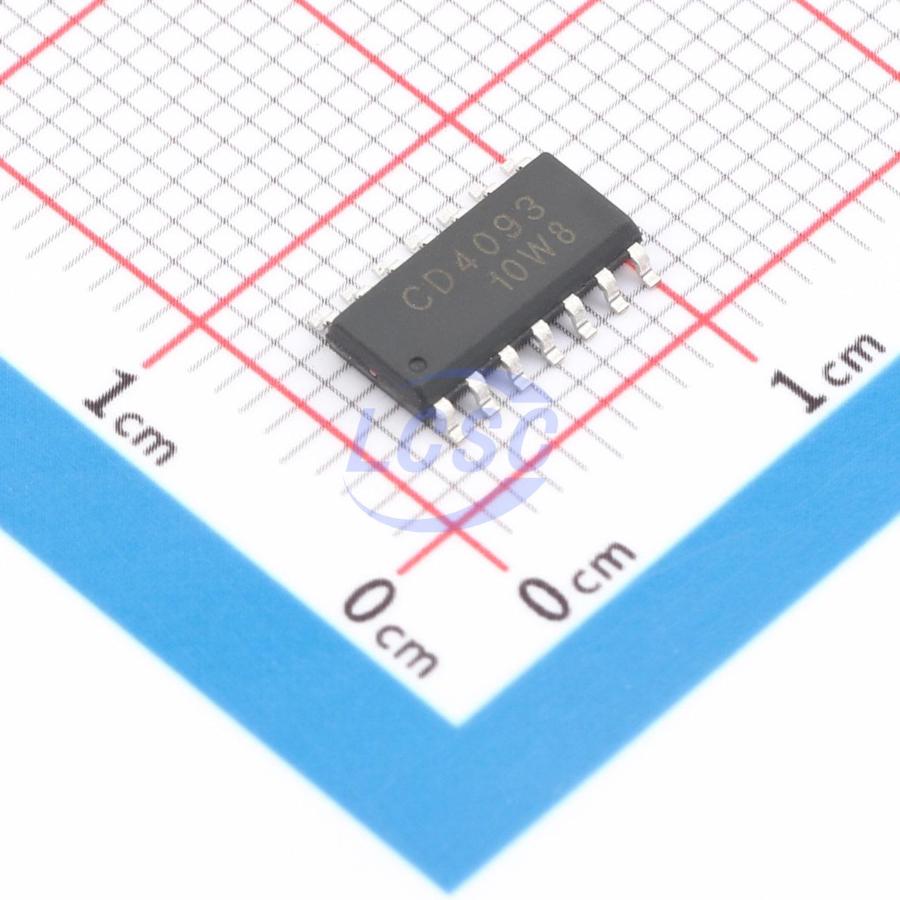

CD4093ADN
Schmitt trigger 3V~15V 100ns@5V,50pF 4uA SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CD4093ADN
- Store part #
- C52145443
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,055 in stock
#C52145443
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.00 | ₹145.00 |
| 50+ | ₹22.94 | ₹1,147.00 |
| 150+ | ₹20.35 | ₹3,052.50 |
| 500+ | ₹17.11 | ₹8,555.00 |
| 2,500+ | ₹15.66 | ₹39,150.00 |
| 4,000+ | ₹14.80 | ₹59,200.00 |
5 × ₹29.00
₹145.00
excl. GST
₹171.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD4093ADN
₹145.00 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- CD4
- Voltage - Supply
- 3V~15V
- Propagation Delay
- 100ns@5V,50pF
- Output Logic Level - Low
- 50mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 14.95V~15V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.325 g
Overview
The CD4093 is a quad 2-input NAND Schmitt trigger. Each input features a Schmitt trigger circuit. The gate switches at different voltage points for rising and falling edge signals. The difference between the positive threshold voltage VT+ and the negative threshold voltage VT− is defined as the hysteresis voltage VH. The device operates over a recommended VDD supply voltage range of 3V to 15V, referenced to VSS (typically ground). Unused inputs must be connected to VDD, VSS, or another input.
Applications
- Waveform and pulse shapers
- High-noise environment systems
- Monostable multivibrators
- Astable multivibrators
- NAND gate logic
Key features
- Wide supply voltage range: 3V to 15V
- Schmitt trigger input discrimination
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Operating temperature range: -40°C to +125°C
