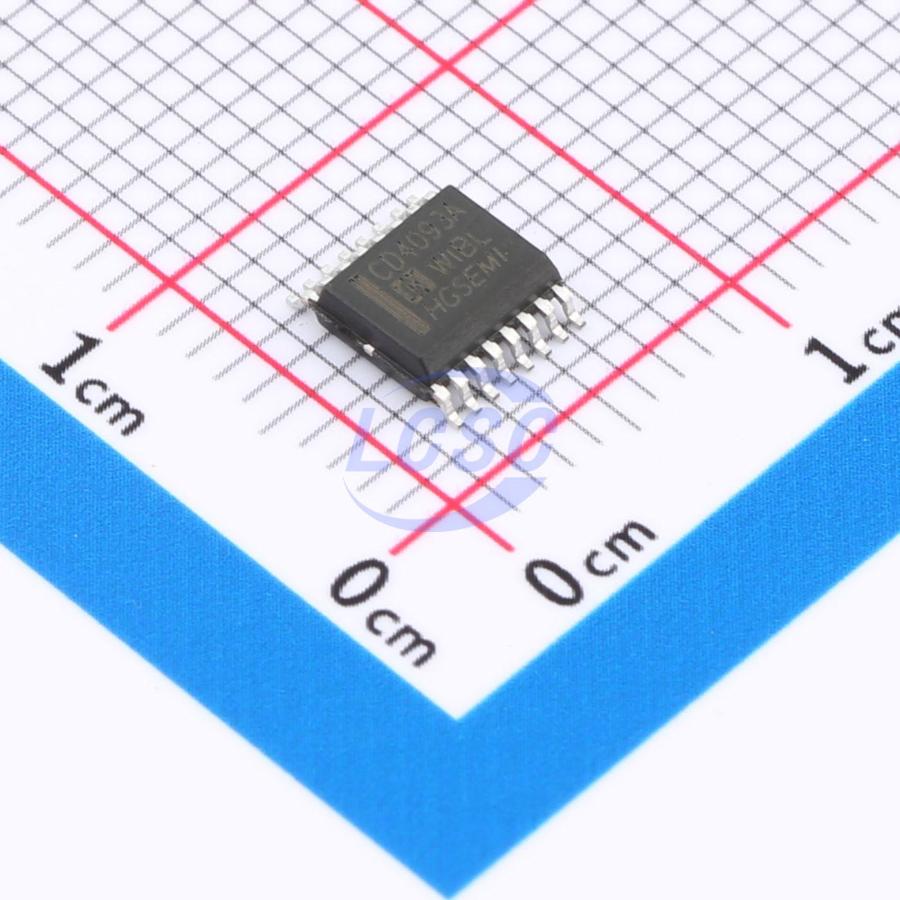

CD4093AMS/TR
NAND Gate IC 4 Channel QSOP-16
QSOP-16RoHSActive
Quad 2-Input Schmitt Trigger NAND Gates
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4093AMS/TR
- Store part #
- C47411553
- Package / case
- QSOP-16
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C47411553
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.21 | ₹86.05 |
| 50+ | ₹13.61 | ₹680.50 |
| 150+ | ₹11.80 | ₹1,770.00 |
| 500+ | ₹10.45 | ₹5,225.00 |
| 2,500+ | ₹9.38 | ₹23,450.00 |
| 5,000+ | ₹8.84 | ₹44,200.00 |
5 × ₹17.21
₹86.05
excl. GST
₹101.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4093AMS/TR
₹86.05 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- CD4
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 50mV
- Propagation Delay
- 130ns@15V,50pF
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 100nA
- Current - Output High(IOH)
- 20mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 22mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.279 g
Overview
This device is a quad 2-input Schmitt-trigger NAND gate, with Schmitt triggers integrated on both inputs of each gate. The positive-going threshold voltage (V_T+) and negative-going threshold voltage (V_T−) differ, and the difference between them is defined as the hysteresis voltage (V_H). All unused inputs must be connected to V_DD, V_SS, or other inputs. Available in SOP-14, TSSOP-14, DIP-14, QSOP-16, and QFN-16 packages.
Applications
- Pulse shaper
- High-noise environment systems
- Monostable multivibrator
- Astable multivibrator
- NAND logic gate
Key features
- Wide operating voltage range: 3~15V
- Schmitt trigger inputs
- Fully static operation
- 5V, 10V, and 15V parametric ratings available
- Standard symmetrical output characteristics
