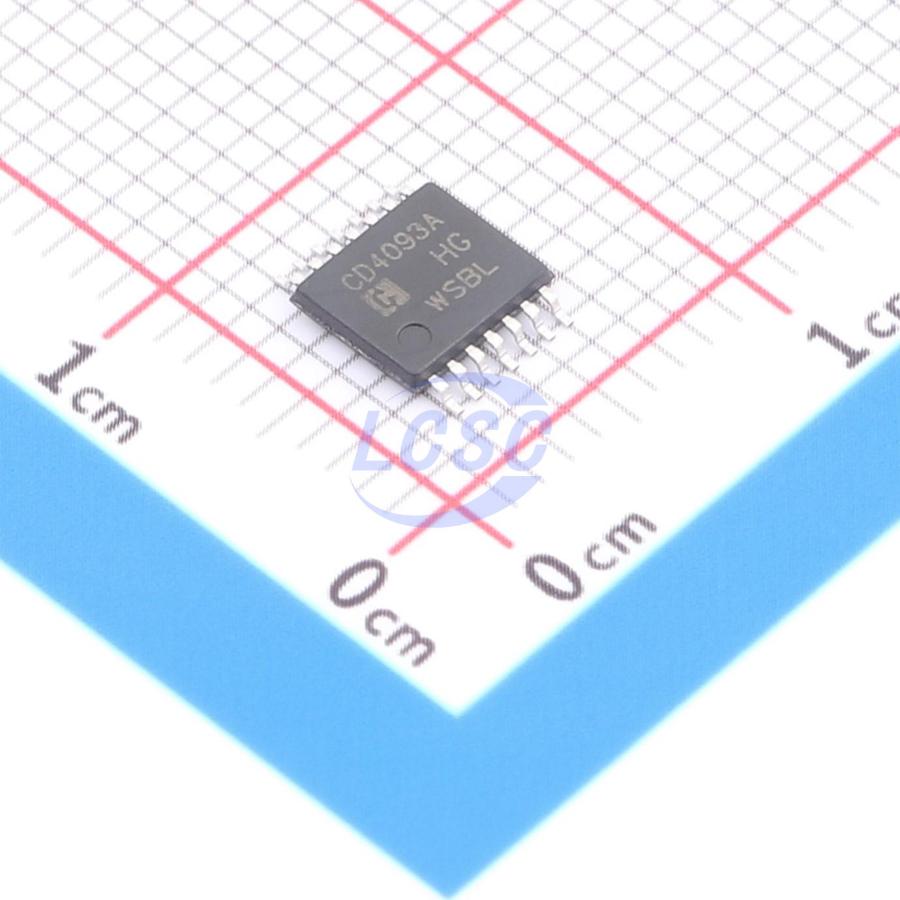

CD4093AMT/TR
NAND Gate IC 4 Channel TSSOP-14
TSSOP-14RoHSActive
Quad 2-Input Schmitt Trigger NAND Gates
- Manufacturer
- HGSEMI
- Manufacturer part #
- CD4093AMT/TR
- Store part #
- C46635760
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C46635760
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.20 | ₹71.00 |
| 50+ | ₹11.23 | ₹561.50 |
| 150+ | ₹9.75 | ₹1,462.50 |
| 500+ | ₹8.62 | ₹4,310.00 |
| 2,500+ | ₹7.73 | ₹19,325.00 |
| 5,000+ | ₹7.29 | ₹36,450.00 |
5 × ₹14.20
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4093AMT/TR
₹71.00 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 4000 Series
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 0V~50mV
- Propagation Delay
- 380ns@5V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Quiescent Current(Iq)
- 100nA
- Current - Output High(IOH)
- 20mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 22mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.328 g
Overview
The CD4093A is a quad 2-input NAND gate with Schmitt-trigger inputs on each gate. The positive threshold voltage (V_T+) and negative threshold voltage (V_T-) differ in value, and the difference between them is defined as the hysteresis voltage (V_H). Unused inputs must be connected to V_DD, V_SS, or another input. The device is available in SOP-14, TSSOP-14, DIP-14, and QFN-16 packages.
Applications
- Pulse shaper
- High-noise environment systems
- Monostable multivibrator
- Astable multivibrator
- NAND logic gate
Key features
- Wide supply voltage range: 3~15V
- Schmitt trigger inputs
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standard symmetrical output characteristics
Alternatives
Similar parts — check the datasheet before substituting.
