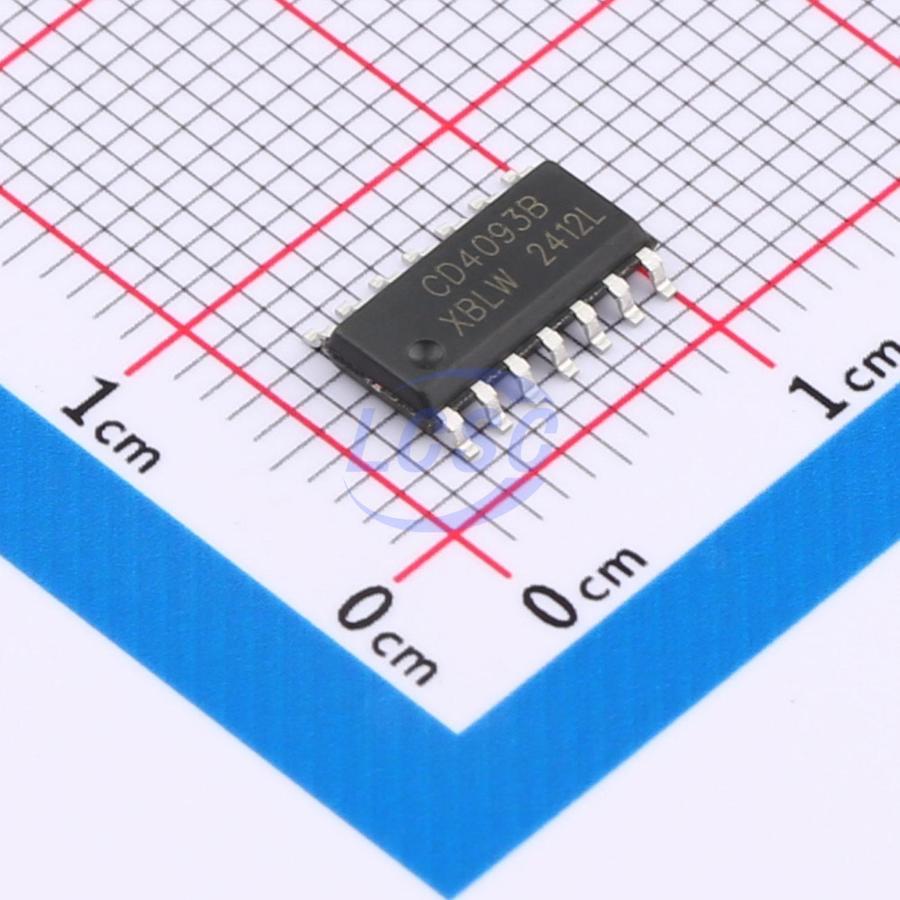

CD4093BDTR(XBLW)
Schmitt trigger 3V~15V SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Quad 2-input Nand Schmitt Gate
- Manufacturer
- XBLW
- Manufacturer part #
- CD4093BDTR(XBLW)
- Store part #
- C41361405
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,075 in stock
#C41361405
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.43 | ₹107.15 |
| 50+ | ₹16.74 | ₹837.00 |
| 150+ | ₹14.72 | ₹2,208.00 |
| 500+ | ₹12.21 | ₹6,105.00 |
| 2,500+ | ₹11.09 | ₹27,725.00 |
| 5,000+ | ₹10.41 | ₹52,050.00 |
5 × ₹21.43
₹107.15
excl. GST
₹126.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD4093BDTR(XBLW)
₹107.15 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- CD4
- Voltage - Supply
- 3V~15V
- Output Logic Level - Low
- 0V~50mV
- Propagation Delay
- 100ns@5V,50pF;60ns@10V,50pF;50ns@15V,50pF
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.95V~5V;9.95V~10V;14.95V~15V
- Current - Output High(IOH)
- 6.8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 6.8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.263 g
Overview
The CD4093 is a quad two- input NAND gate. Each input has a Schmitt trigger circuit. The gate switches at different points for positive- going and negative- going signals. The difference between the positive voltage (VT+) and the negative voltage (VT-) is defined as hysteresis voltage (VH) It operates over a recommended VDD power supply range of 3V to 15V referenced to VSS (usually ground). Unused inputs must be connected to VDD, VSS, or another input.
Applications
- Wave and pulse shapers
- High-noise-environment systems
- Monostable multivibrators
- Astable multivibrators
- NAND logic
Key features
- Wide supply voltage range from 3V to 15V
- Schmitt trigger input discrimination
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- Specified from -40℃ to +125℃
- Packaging information: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD4011BDTR(XBLW)#C48971051XBLW · SOP-14 | XBLW | SOP-14 | 2,480 | ₹9.18 · 2,480 in stock | View |
 | MC14093BDR2G(XBLW)#C22387039XBLW · SOP-14 | XBLW | SOP-14 | 275 | ₹33.62 · 275 in stock | View |
 | MC14011BDR2G(XBLW)#C22387036XBLW · SOP-14 | XBLW | SOP-14 | 915 | ₹39.44 · 915 in stock | View |
