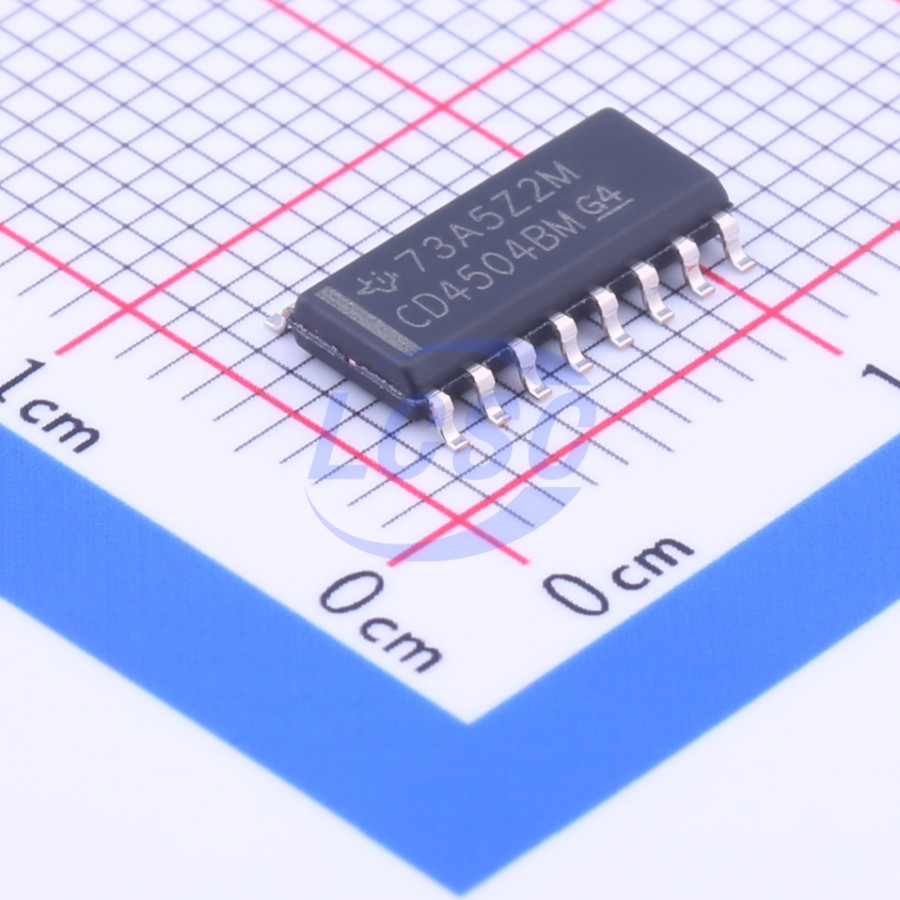

CD4504BM96

This is a CMOS hex voltage translator for TTL-to-CMOS or CMOS-to-CMOS operation, high-voltage type (20V rating). The CD4504B hex voltage translator contains six circuits that translate input signals from VCC logic levels to VDD logic levels. To translate TTL signals to CMOS logic levels, the SELECT input is held at a VCC high logic state; when the SELECT input is at a low logic state, each circuit translates signals from one CMOS level to another. The CD4504B is available in multiple packages: 16-pin ceramic sealed DIP (F3A suffix), 16-pin plastic DIP (E suffix), 16-pin small-outline package (M, M96, MT suffixes), and 16-pin thin shrink small-outline package (PW, PWR suffixes). All inputs are protected by CMOS protection networks.

Key features

• Independence of power- supply sequence considerations - Vcc can exceed Voo input signals can exceed both Vcc and Voo
• Up and down level- shifting capability
• Shintable input threshold for either CMOS or TTL compatibility
• Standardized symmetrical output characteristics
• 100% tested for equivalent current
• 20V Maximum input current of 1μA at 18V over full package- temperature range; 100nA at 18V and 25℃
• 5V, 10V, and 15V parametric ratings
• Meets all requirements of JEDEC Standard No.13B Standard Specifications for Description of 'B' Series CMOS Devices
