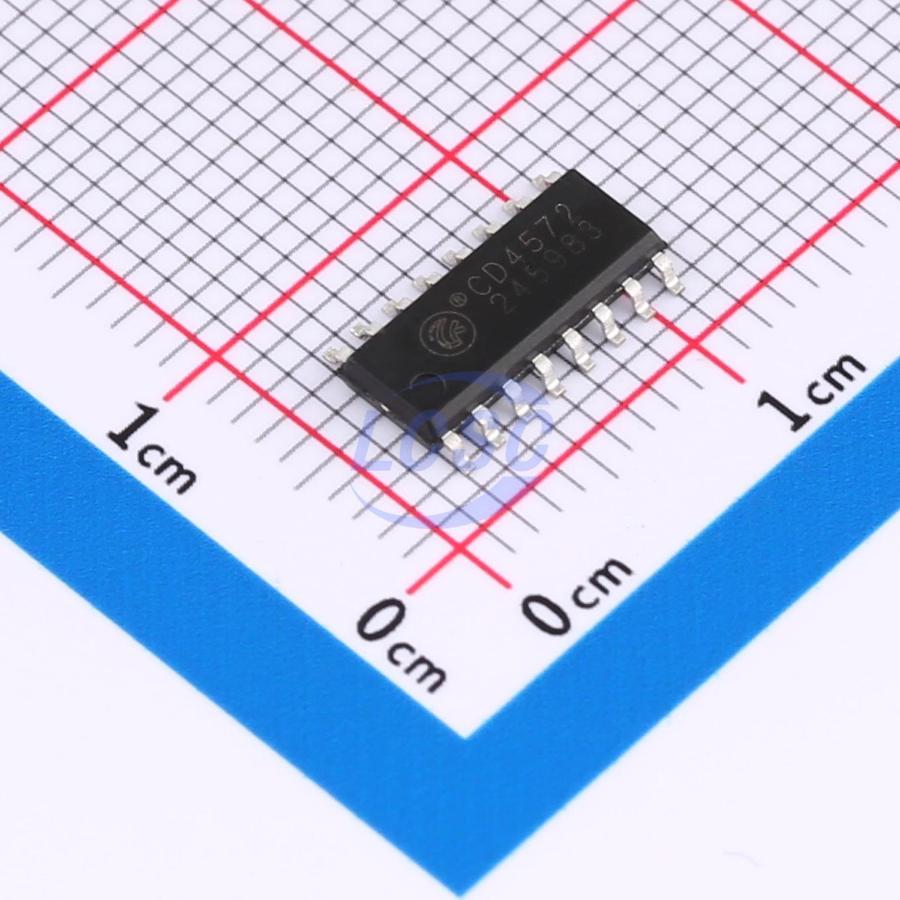

CD4572NS16ARDQ

1uA 5V~15V SOP-16 Gates and Inverters

SOP-16RoHSActive

CMOS Hex Gate

Manufacturer: GR
Manufacturer part #: CD4572NS16ARDQ
Store part #: C22465477
Package / case: SOP-16
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,775 in stock

#C22465477

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹126.10	₹126.10
10+	₹113.82	₹1,138.20
30+	₹107.06	₹3,211.80
100+	₹99.49	₹9,949.00
500+	₹96.21	₹48,105.00
1,000+	₹94.57	₹94,570.00

Quantity (min 1)

1 × ₹126.10

₹126.10

excl. GST

₹148.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

CD4572NS16ARDQ

₹126.10 for 1 + GST

Specifications

Logic Family: CD4
Operating Temperature: -40℃~+85℃
Input Logic Level - High: 4V;8V;12.5V
Input Logic Level - Low: 1V;2V;2.5V
Output Logic Level - High: 4.95V;9.95V;14.95V
Quiescent Current(Iq): 1uA
Voltage - Supply: 5V~15V
Number of Channels: 6;-
Current - Output High(IOH): 10mA
Output Logic Level - Low: 50mV
Current - Output Low(IOL): 20mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.344 g

Overview

CD4572 Hex Gate provides the system designer with direct implementation of inverter, NAND, and NOR functions and supplements the existing family of CMOS gates. Standardized symmetrical output characteristics 100% tested for quiescent current at 18V Maximum input current of 1μA at 18V and 25℃ 5V, 10V, and 15V parametric ratings

Key features

Pin 7 NOR input positioned adjacent to VSS for easy use of gate as an inverter
Pin 15 NAND input positioned adjacent to VDD for easy use of gate as an inverter
