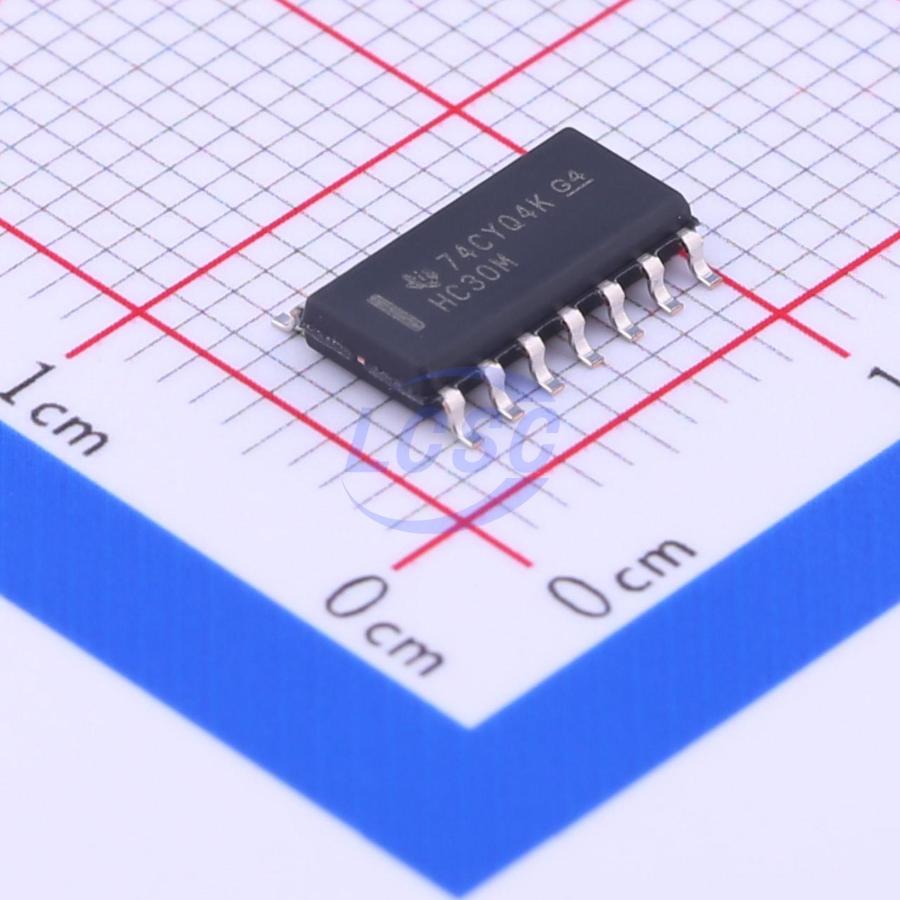

CD74HC30M96

The HC30 and HCT30 each integrate a single 8-input NAND gate in one package, providing system designers with a direct implementation of positive-logic 8-input NAND function. This logic gate is fabricated using silicon-gate CMOS technology, achieving operating speeds comparable to LSTTL gates while maintaining the low-power characteristics of standard CMOS ICs. All devices are capable of driving 10 LSTTL loads. The HCT logic family is functionally pin-compatible with the standard LS logic family.

Key features

• Buffered inputs
• Typical propagation delay: 10ns (VCC = 5V, CL = 15pF, TA = 25℃)
• Fan-out capability over full temperature range
• Standard outputs drive 10 LSTTL loads
• Bus driver outputs drive 15 LSTTL loads
• Operating temperature range: -55℃ to 125℃
• Balanced propagation delay and transition time
• Significantly reduced power consumption vs. LSTTL logic ICs
• HC type: 2V to 6V operating voltage
• High noise immunity: NIL = 30% of VCC, NIH = 30% of VCC at VCC = 5V
• HCT type: 4.5V to 5.5V operating voltage
• Direct LSTTL input logic compatibility: VIL max 0.8V, VIH min 2V
• CMOS input compatible: II ≤ 1μA at VOL, VOH
