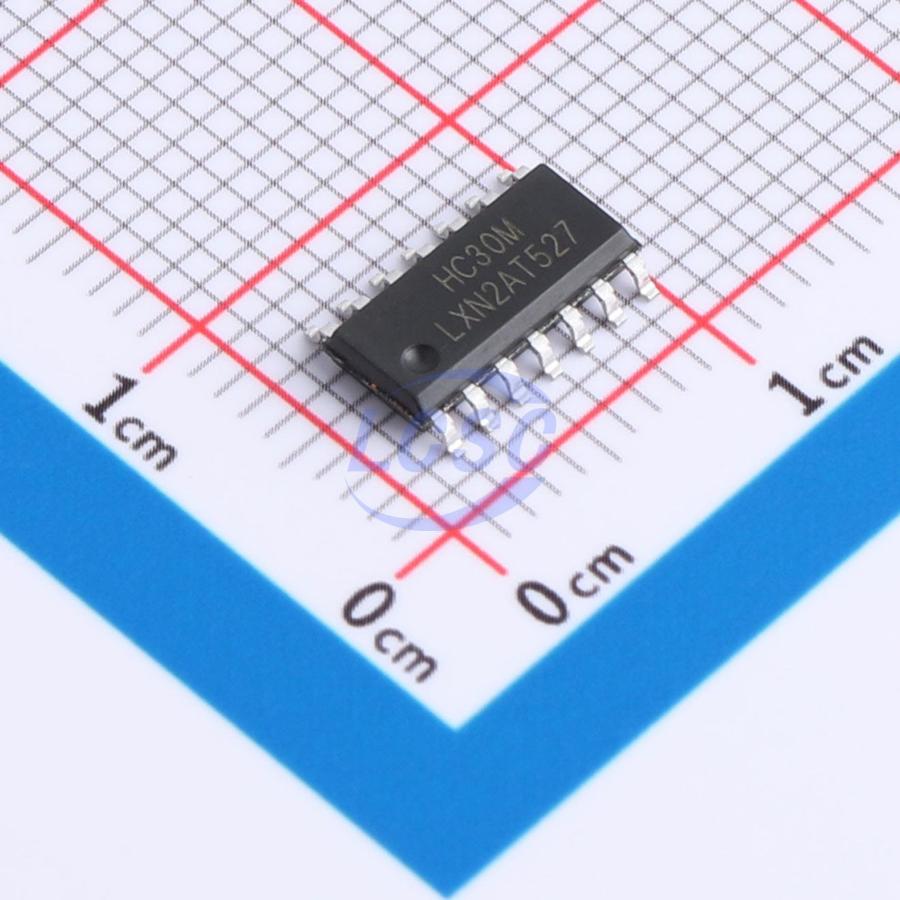

CD74HC30M96-JSM
StandardCMOS 2V~6V 22ns 2uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- CD74HC30M96-JSM
- Store part #
- C53114341
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,805 in stock
#C53114341
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.70 | ₹113.50 |
| 50+ | ₹17.98 | ₹899.00 |
| 150+ | ₹15.96 | ₹2,394.00 |
| 500+ | ₹13.44 | ₹6,720.00 |
| 2,500+ | ₹12.32 | ₹30,800.00 |
| 4,000+ | ₹11.64 | ₹46,560.00 |
5 × ₹22.70
₹113.50
excl. GST
₹133.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CD74HC30M96-JSM
₹113.50 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 22ns
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Number of Channels
- 1;8
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
The 74HC/HCT30 is an 8-input NAND gate. Inputs include clamping diodes, allowing the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
Key features
- Input levels: 74HC/HCT30: CMOS; 74HCT30: TTL
- Operating temperature range: -40℃ ~ +125℃
- Package types: DIP14/SOP14/TSSOP14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC30D,653-JSM#C49364583JSMSEMI · SOP-14 | JSMSEMI | SOP-14 | 4,610 | ₹25.94 · 4,610 in stock | View |
