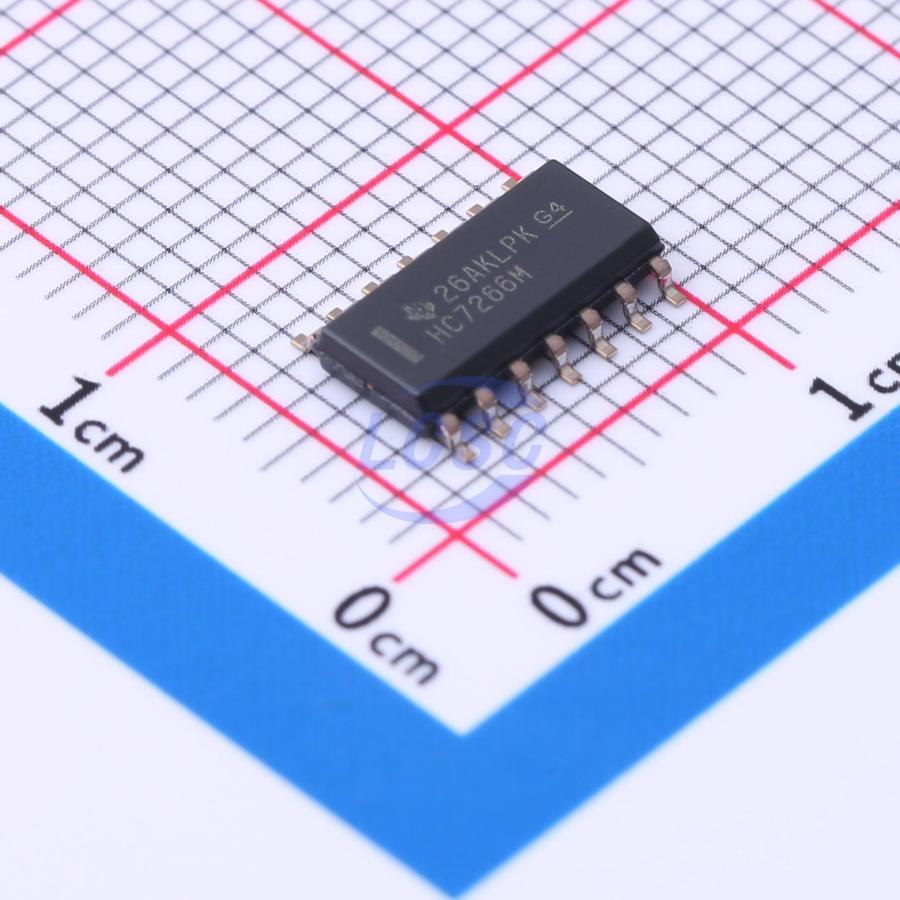

CD74HC7266M96
XNOR Gate IC 4 Channel SOIC-14
SOIC-14ROHS3 CompliantActive
Quad 2-Input XNOR Gates
- Manufacturer
- TI
- Manufacturer part #
- CD74HC7266M96
- Store part #
- C2878616
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,783 in stock
#C2878616
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹187.30 | ₹187.30 |
| 10+ | ₹164.93 | ₹1,649.30 |
| 30+ | ₹149.27 | ₹4,478.10 |
| 100+ | ₹134.72 | ₹13,472.00 |
| 500+ | ₹128.20 | ₹64,100.00 |
| 1,000+ | ₹125.38 | ₹1,25,380.00 |
1 × ₹187.30
₹187.30
excl. GST
₹221.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CD74HC7266M96
₹187.30 for 1 + GST
Specifications
- Input Type
- StandardCMOS
- output type
- Push-pull
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 30ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -55℃~+125℃
- Output Logic Level - High
- 1.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
This device contains four independent dual-input NOR gates. Each logic gate implements the Boolean function Y = (A XOR B)‾ in positive logic.
Applications
- Detects phase difference in input signals
- Configurable as inverter/buffer
Key features
- Buffered inputs
- Wide supply voltage range: 2V to 6V
- Wide operating temperature range: -55℃ to +125℃
- Fan-out supporting up to 10 LSTTL loads
- Significantly lower power consumption compared to LSTTL logic ICs
