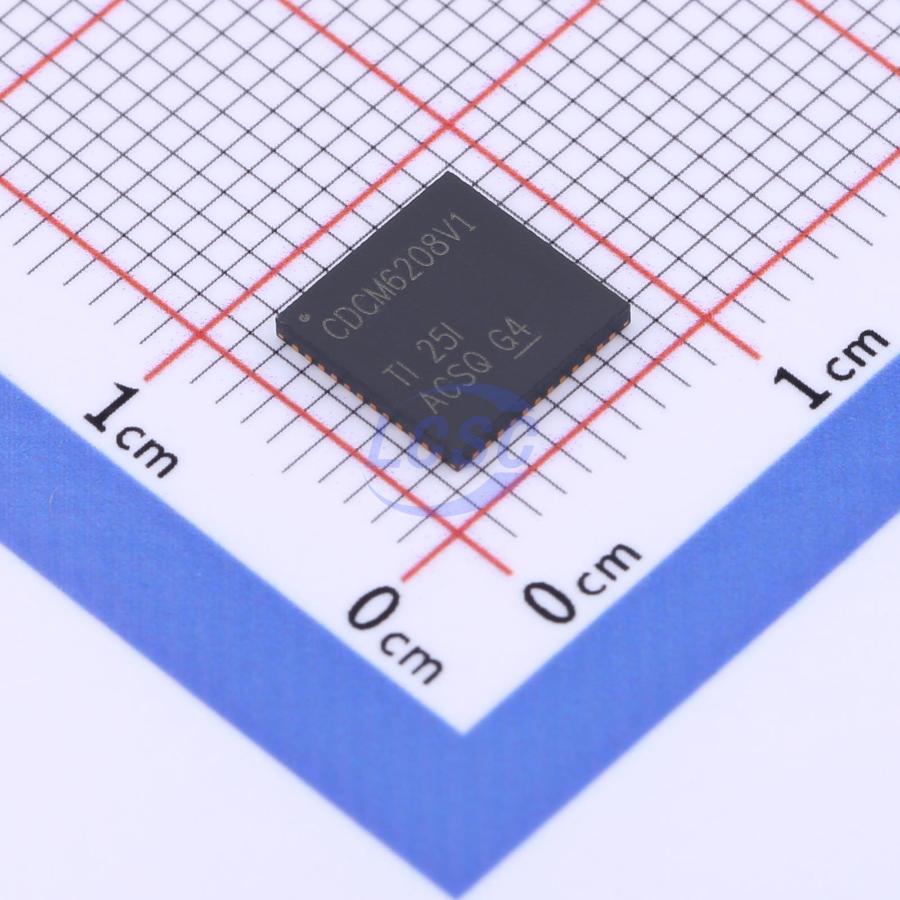

CDCM6208V1RGZR

800MHz 8 VQFN-48-EP(7x7) Clock Generators, PLLs, Frequency Synthesizers RoHS

VQFN-48-EP(7x7)ROHS3 CompliantActive

2:8 Clock Generator/Jitter Eliminator with Fractional-N Divider

Manufacturer: TI
Manufacturer part #: CDCM6208V1RGZR
Store part #: C544567
Package / case: VQFN-48-EP(7x7)
Category: Clock Generators, PLLs, Frequency Synthesizers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,771 in stock

#C544567

Stock & price checked 43 h ago

Quantity	Unit price	Pack price
1+	₹762.76	₹762.76
10+	₹654.78	₹6,547.80
30+	₹551.80	₹16,554.00
100+	₹486.97	₹48,697.00
500+	₹457.06	₹2,28,530.00
1,000+	₹443.60	₹4,43,600.00

Quantity (min 1)

1 × ₹762.76

₹762.76

excl. GST

₹900.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CDCM6208V1RGZR

₹762.76 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Clock/Oscillator: External;Built-in
Output Frequency(Max): 800MHz
Voltage - Supply: 1.8V;2.5V;3.3V
Period Jitter, Peak-to-Peak: -;-
Interface: SPI;I2C
Features: On-chip VCO/DCO;Integrated clock jitter cleaner;Built-in phase-locked loop;Output synchronization and phase alignment;Built-in clock monitoring and loss-of-lock detection;Multi-source clock input
Input: CML;LVPECL;LVDS;LVCMOS
Output Level: LVPECL;CML;LVDS;HCSL;LVCMOS
Phase Jitter: 265fs
Number of Outputs: 8

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.18 g

Overview

The CDCM6208 is a versatile, low-jitter, low-power frequency synthesizer that can generate eight low-jitter clock outputs using either a unique low-frequency crystal oscillator or one of two inputs of CML, LVPECL, LVDS, or LVCMOS signals. The outputs can be selected from high-swing CML similar to LVPECL, normal-swing CML, low-power CML similar to LVDS, HCSL, or LVCMOS. It is widely applicable to various wireless infrastructure basebands, small cells, wired data communications, computing, low-power medical imaging, and portable test and measurement applications. The CDCM6208 also features an innovative fractional divider architecture for four of its outputs, capable of generating arbitrary frequencies with an accuracy better than 1 ppm. The CDCM6208 can be easily configured via the I²C or SPI programming interface. In the absence of a serial interface, it also offers a pin mode to set the device to one of 32 different pre-programmed configurations through control pins.

Applications

Baseband clocking (wireless infrastructure)
Networking and data communications
Micro and picocell base stations
Keystone C66x multicore DSP clocking
Storage servers, portable test equipment
Medical imaging, high-end A/V

Key features

Low-noise synthesizer (265 fs-rms typical jitter) or low-noise jitter cleaner (1.6 ps-rms typical jitter)
0.5W typical power consumption
High channel-to-channel isolation and excellent PSRR
Device performance customization via flexible 1.8V, 2.5V, and 3.3V supplies with mixed output voltage support
4x integer down-divide differential clock outputs supporting LVPECL-like, CML, or LVDS-like signaling
4x fractional or integer divide differential clock outputs supporting HCSL, LVDS-like signaling, or 8 CMOS outputs
Fractional output divider enables 0 ppm to sub-1 ppm frequency error without crystal oscillators or other clock generators
Output frequency up to 800MHz
Dual differential inputs, XTAL support, and intelligent switching
SPI, I²C, and pin-programmable
Professional GUI for rapid design turnaround
7×7 mm 48-VQFN package (RGZ)
-40°C to 85°C temperature range
