JSCJDatasheet (PDF)

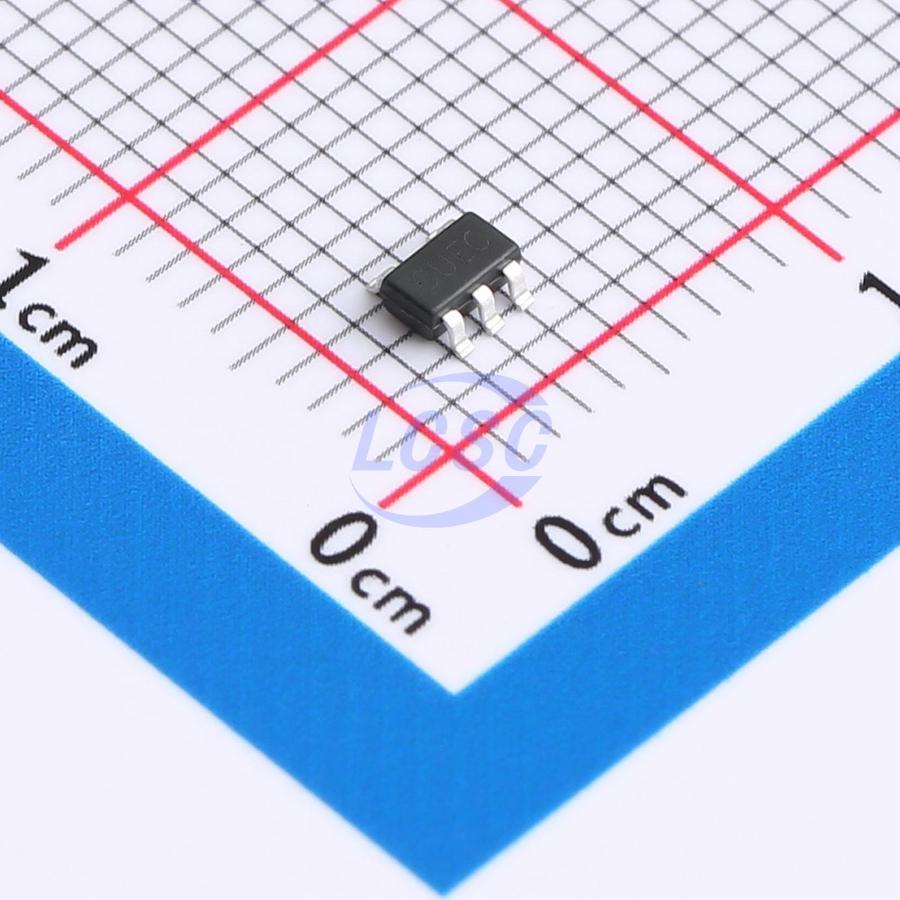

CJ6101B20M
2V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantSold out at source
Ultra Low Current Consumption 300mA CMOS Voltage Regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6101B20M
- Store part #
- C17703063
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,275 in stock
#C17703063
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.93 | ₹59.65 |
| 50+ | ₹9.43 | ₹471.50 |
| 150+ | ₹8.19 | ₹1,228.50 |
| 500+ | ₹7.25 | ₹3,625.00 |
| 3,000+ | ₹6.50 | ₹19,500.00 |
| 6,000+ | ₹6.13 | ₹36,780.00 |
5 × ₹11.93
₹59.65
excl. GST
₹70.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6101B20M
₹59.65 for 5 + GST
Specifications
- Output Voltage
- 2V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 800nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The CJ6101 series is a group of low dropout positive voltage regulators with ultra-low quiescent power consumption manufactured by CMOS technology. It can provide 300mA output current, and can provide large output current even when the input and output voltage difference is very small. Because of their ultra-low quiescent current, the CJ6101 series are very suitable for battery powered equipment, such as RF applications and other systems requiring quiet voltage sources, to improve the efficiency of these systems and prolong the battery life of the device.
Applications
- Portable Consumer Equipments
- Radio Control Systems
- Laptop, Palmtops and PDAs
- Wireless Communication Equipments
- Portable Audio Video Equipments
- Ultra Low Power Micro-controller
Key features
- Input Voltage Range: 1.8V ~ 6.0V
- Fixed Output Voltage: Designed for 1.0V to 5.0V Output
- Output Voltage Tolerance: ±2% for Conventional Device, ±1% can be Customized
- Output Current: 300mA
- Quiescent Current: 0.8μA (Typ.)
- Dropout Voltage: 110mV@100mA (VOUT = 3.3V)
- Power Supply Rejection Ratio: 50dB@1kHz
- Low Output Noise: 27×VOUT μVRMS (10Hz ~ 100kHz)
- Good Transient Response
- Integrated Fault Protection:
- Fold-back Current Limit
- Thermal Shutdown
- Short-Circuit Protection
