JSCJDatasheet (PDF)

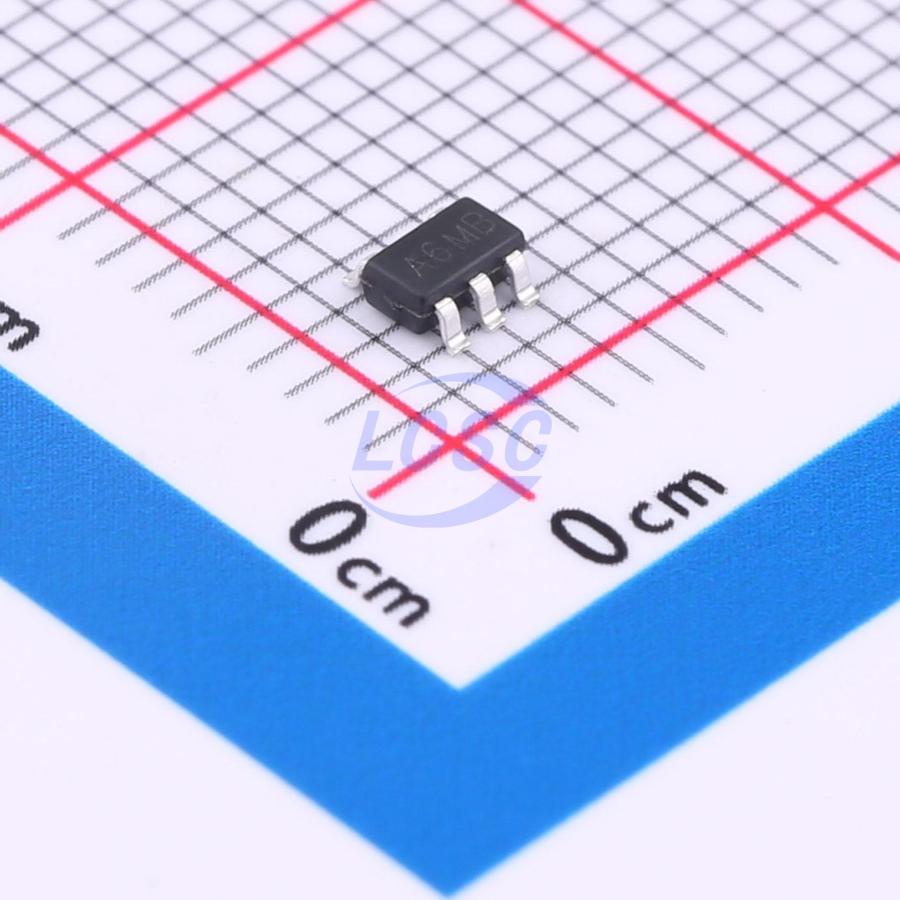

CJ6300BM
600mV~5.5V Positive Adjustable SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
Ultralow-Noise, High PSRR, Fast RF Low-Dropout CMOS Voltage Regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6300BM
- Store part #
- C2829398
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,150 in stock
#C2829398
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.27 | ₹82.70 |
| 100+ | ₹6.60 | ₹660.00 |
| 300+ | ₹5.77 | ₹1,731.00 |
| 3,000+ | ₹5.15 | ₹15,450.00 |
| 6,000+ | ₹4.64 | ₹27,840.00 |
| 9,000+ | ₹4.39 | ₹39,510.00 |
10 × ₹8.27
₹82.70
excl. GST
₹97.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ6300BM
₹82.70 for 10 + GST
Specifications
- Output Voltage
- 600mV~5.5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 45uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Output Type
- Adjustable
- Features
- Enable control;Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.053 g
Overview
The CJ6300 series are a group of positive voltage regulators manufactured by CMOS technologies with high ripple rejection, ultra low noise, low power consumption and low dropout voltage, which can prolong battery life in portable electronics. The CJ6300 series work with low-ESR ceramic capacitors, reducing the amount of board space necessary for power applications. The CJ6300 series consume less than 0.1μA in shutdown mode and have fast turn-on time less than 50μs. The series are very suitable for the battery-powered equipments, such as RF applications and other systems requiring a quiet voltage source.
Applications
- RF: VCOs, Receivers, ADCs
- Cellular and Cordless Telephones
- Handheld Organizers
- Audio
- Bluetooth, Wireless LAN
- Tablet, MID
Key features
- 500mA RF Low-Dropout Regulator With Enable
- Ultralow-Noise: 40μVRMS(10Hz~100kHz)
- High PSRR: 70dB@1kHz
- Fast Start-Up Time (20μs)
- Excellent Load/Line Transient Response
- Low Dropout Voltage: 110mV@100mA
- Stable With a 1μF Ceramic Capacitor
- Available in Adjustable Voltage Version (0.6V to 5.5V)
- Built-in Current Limiter, Short-Circuit Protection
