JSCJDatasheet (PDF)

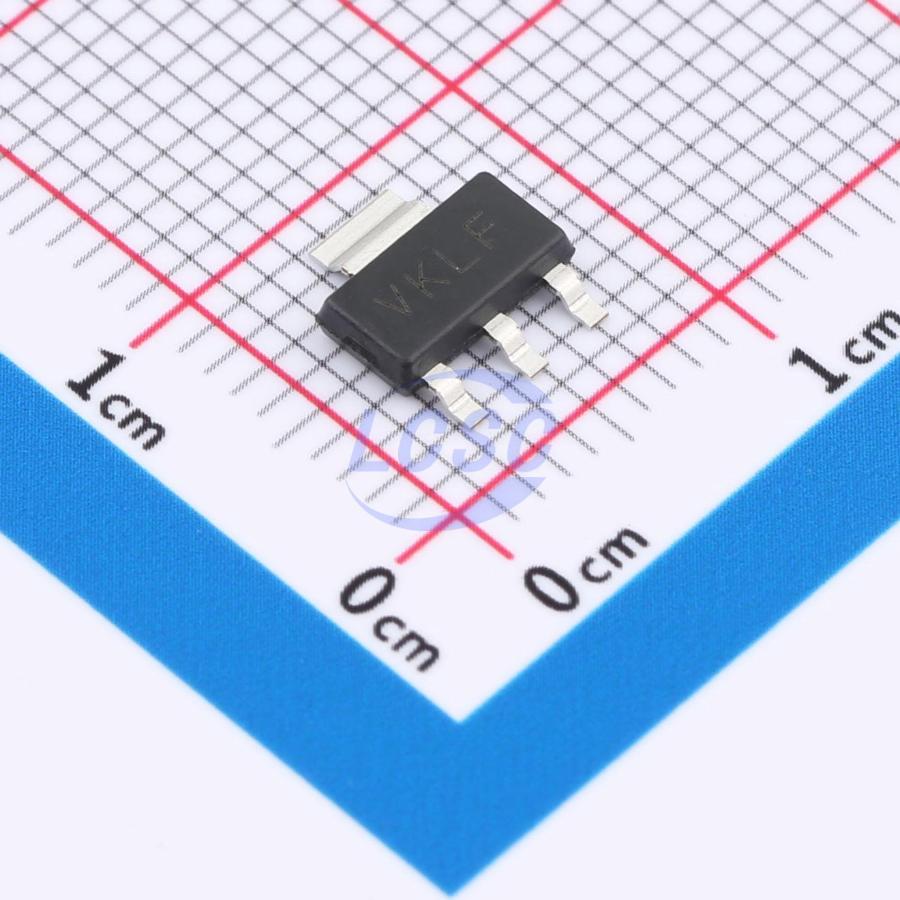

CJ6385A50G
Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-223
SOT-223ROHS CompliantActive
40V input voltage, 200mA, ultra-low IQ low-dropout regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ6385A50G
- Store part #
- C47089420
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,525 in stock
#C47089420
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.02 | ₹80.10 |
| 50+ | ₹12.58 | ₹629.00 |
| 150+ | ₹10.86 | ₹1,629.00 |
| 500+ | ₹9.58 | ₹4,790.00 |
| 2,500+ | ₹8.55 | ₹21,375.00 |
| 5,000+ | ₹8.03 | ₹40,150.00 |
5 × ₹16.02
₹80.10
excl. GST
₹94.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJ6385A50G
₹80.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 40V
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.261 g
Overview
The CJ6385 series is a low-dropout linear regulator manufactured using CMOS process technology. The input voltage can reach up to 40V. Under adequate thermal dissipation conditions, it can deliver output currents up to 200mA. The series features a quiescent current as low as 2.0μA, with integrated thermal shutdown and short-circuit protection. As a result, the CJ6385 series is well-suited for battery-powered devices, such as RF applications and other systems requiring low-power voltage sources.
Applications
- Electricity meters, water meters, gas meters
- Fire alarms, smoke detectors
- Home appliances
- Network interface cards
- Portable audio/video devices
- Wireless communication devices
Key features
- Input voltage range: 3.0 ~ 40V
- Output voltage: selectable range 2.8V to 9.0V, output accuracy: ±2%
- Output current: up to 200mA
- Quiescent current: 2.0μA (typical)
- Dropout voltage: 400mV@50mA
- Power supply rejection ratio: 75dB@100Hz
- Excellent transient response
- Integrated fault protection: built-in current limiting, short-circuit protection, thermal shutdown
