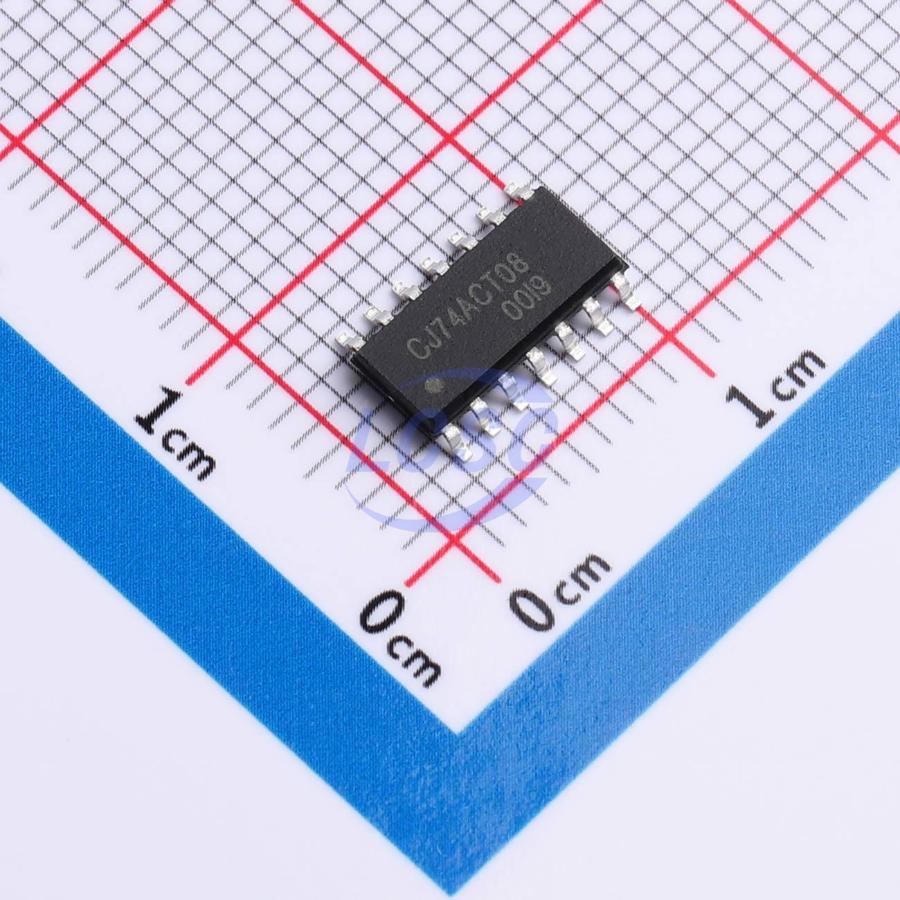

CJ74ACT08ADN
TTL-compatible CMOS 4.5V~5.5V 10ns@5.5V,50pF 200uA SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74ACT08ADN
- Store part #
- C52145727
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,955 in stock
#C52145727
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.24 | ₹146.20 |
| 50+ | ₹22.78 | ₹1,139.00 |
| 150+ | ₹20.02 | ₹3,003.00 |
| 500+ | ₹16.56 | ₹8,280.00 |
| 2,500+ | ₹15.03 | ₹37,575.00 |
| 4,000+ | ₹14.10 | ₹56,400.00 |
5 × ₹29.24
₹146.20
excl. GST
₹172.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CJ74ACT08ADN
₹146.20 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74ACT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 10ns@5.5V,50pF
- Output Logic Level - Low
- 100mV;440mV;1.65V
- Input Logic Level - High
- 2.5V
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.76V;5.4V;4.76V;3.85V
- Quiescent Current(Iq)
- 200uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.31 g
Overview
Applications
- Combined power good signal
- Combined enable signal
Key features
- Supply voltage range: 4.5V ~ 5.5V
- Input level: TTL
- Temperature range: -40℃ ~ +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ74HCT08ADN#C52145459JSCJ · SOP-14 | JSCJ | SOP-14 | 2,120 | ₹24.49 · 2,120 in stock | View |
