JSCJDatasheet (PDF)

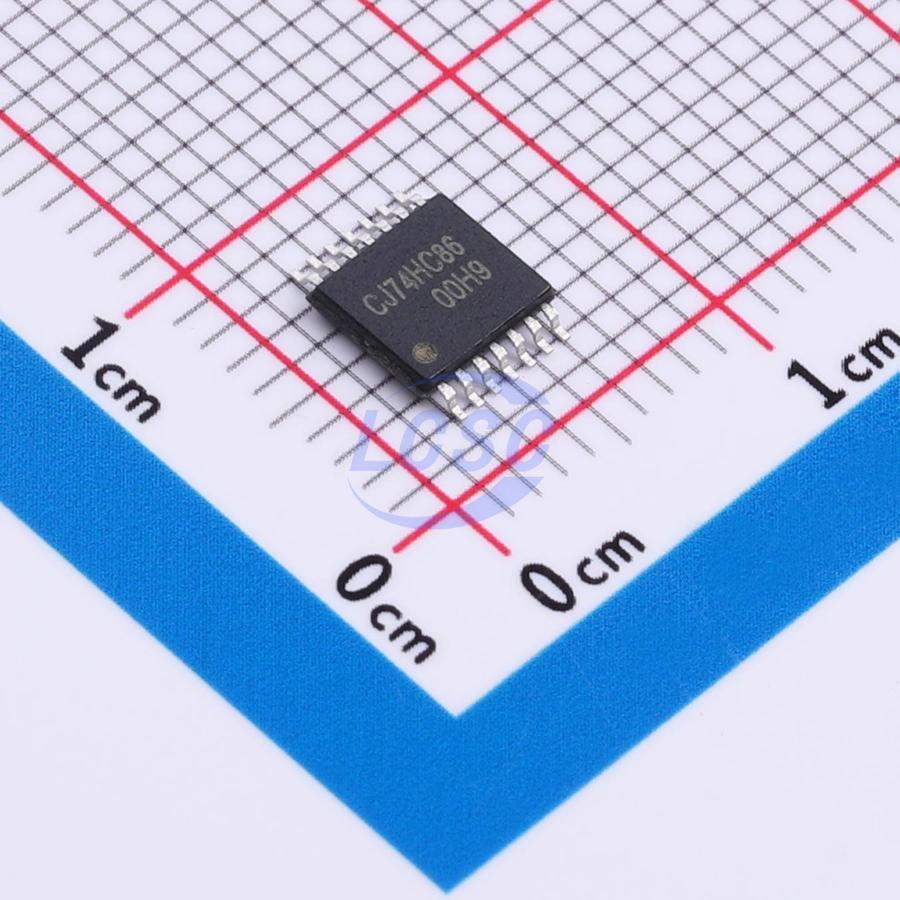

CJ74HC86BDN
StandardCMOS 2V~6V 20ns@6.0V 2uA TSSOP-14 Gates and Inverters
TSSOP-14RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74HC86BDN
- Store part #
- C52145483
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,345 in stock
#C52145483
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.21 | ₹86.05 |
| 50+ | ₹15.12 | ₹756.00 |
| 150+ | ₹14.22 | ₹2,133.00 |
| 500+ | ₹13.10 | ₹6,550.00 |
| 2,500+ | ₹12.59 | ₹31,475.00 |
| 5,000+ | ₹12.29 | ₹61,450.00 |
5 × ₹17.21
₹86.05
excl. GST
₹101.54 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJ74HC86BDN
₹86.05 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 20ns@6.0V
- Output Logic Level - Low
- 260mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
CJ74HC/HCT86 is a quad 2-input exclusive-OR gate. The inputs include clamping diodes, enabling the use of current-limiting resistors to allow the input interface to withstand voltages exceeding VCC.
Applications
- Detects input signal phase difference
- Configurable as inverter/buffer
Key features
- Input levels: CJ74HC86: CMOS; CJ74HCT86: TTL
- Operating temperature range: -40°C ~ +125°C
