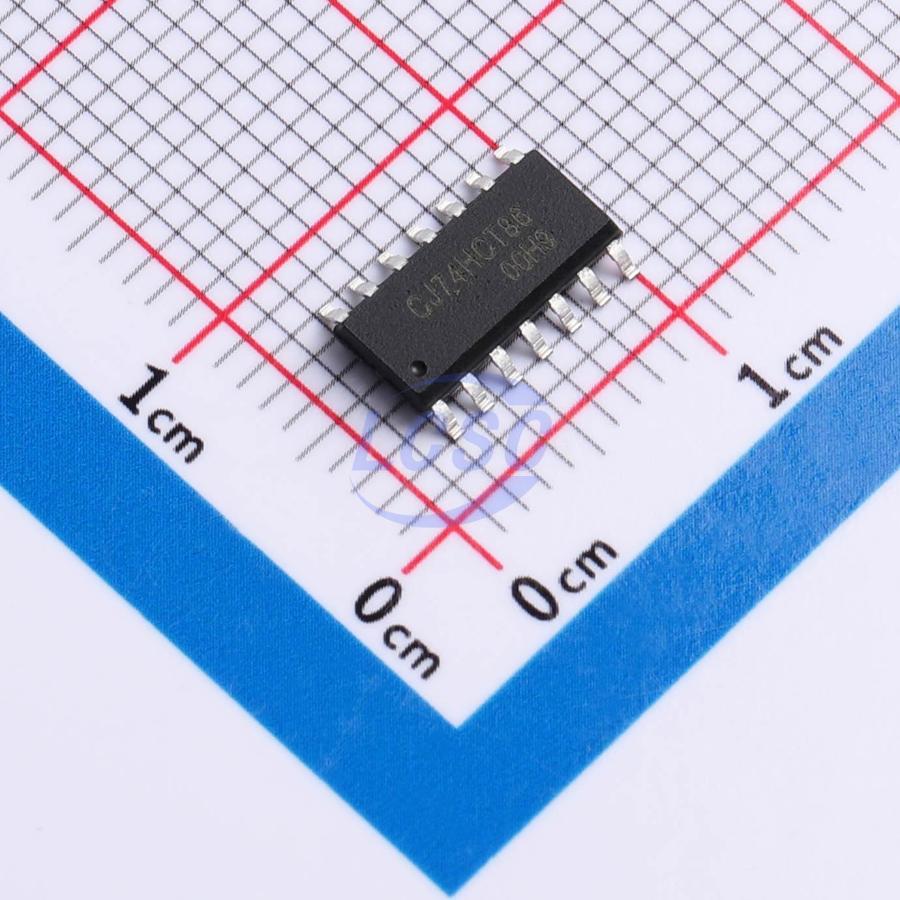

CJ74HCT86ADN
TTL-compatible CMOS 4.5V~5.5V 32ns@4.5V,50pF 2uA SOP-14 Gates and Inverters
SOP-14RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74HCT86ADN
- Store part #
- C52145484
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,825 in stock
#C52145484
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.50 | ₹112.50 |
| 50+ | ₹17.53 | ₹876.50 |
| 150+ | ₹15.40 | ₹2,310.00 |
| 500+ | ₹12.75 | ₹6,375.00 |
| 2,500+ | ₹11.56 | ₹28,900.00 |
| 4,000+ | ₹10.85 | ₹43,400.00 |
5 × ₹22.50
₹112.50
excl. GST
₹132.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CJ74HCT86ADN
₹112.50 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74HCT
- Voltage - Supply
- 4.5V~5.5V
- Propagation Delay
- 32ns@4.5V,50pF
- Output Logic Level - Low
- 260mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 3.98V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
CJ74HC/HCT86 is a quad 2-input exclusive-OR gate. The inputs include clamping diodes, enabling the use of current-limiting resistors to allow the input interface to withstand voltages exceeding VCC.
Applications
- Detects input signal phase difference
- Configurable as inverter/buffer
Key features
- Input levels: CJ74HC86: CMOS; CJ74HCT86: TTL
- Operating temperature range: -40°C ~ +125°C
