JSCJDatasheet (PDF)

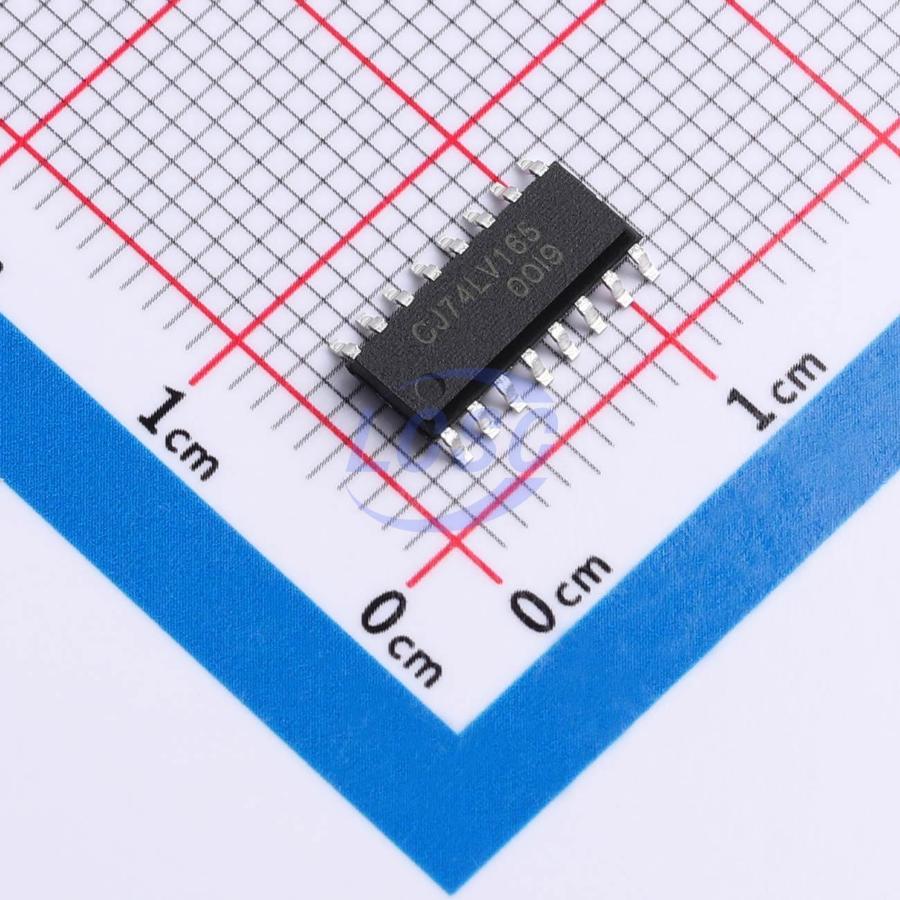

CJ74LV165AEN
1V~5.5V 1 25mA 30ns@5.5V,50pF Parallel or Serial to Serial SOP-16 Shift Registers
SOP-16RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LV165AEN
- Store part #
- C52145649
- Package / case
- SOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,785 in stock
#C52145649
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.52 | ₹147.60 |
| 50+ | ₹23.11 | ₹1,155.50 |
| 150+ | ₹20.36 | ₹3,054.00 |
| 500+ | ₹16.93 | ₹8,465.00 |
| 2,500+ | ₹15.41 | ₹38,525.00 |
| 5,000+ | ₹14.50 | ₹72,500.00 |
5 × ₹29.52
₹147.60
excl. GST
₹174.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJ74LV165AEN
₹147.60 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 1V~5.5V
- Output Type
- Complementary
- Series
- 74LV
- Number of Elements
- 1
- Output Current
- 25mA
- Propagation Delay
- 30ns@5.5V,50pF
- Features
- Asynchronous parallel load function
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.34 g
Overview
CJ74LV165 is an 8-bit parallel-load or serial-input shift register with complementary serial outputs (Q7 and /Q7) at the last stage. All inputs feature Schmitt-trigger action, enabling the circuit to tolerate slow input rise and fall times.
Applications
- Increase the number of microcontroller inputs
Key features
- Wide operating voltage range: 1.0 V to 5.5 V
- 5.5 V tolerant I/O
- Power-down mode
- Operating temperature range: -40°C to +125°C
