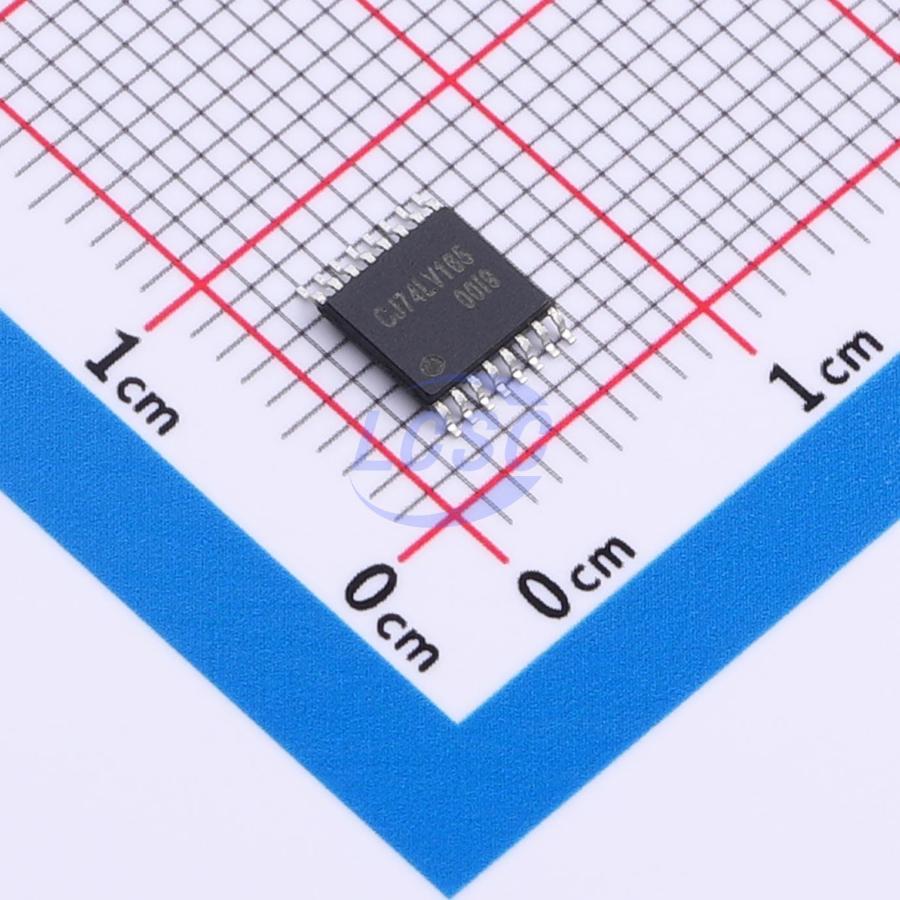

CJ74LV165BEN
1V~5.5V 1 15ns@5V,50pF Parallel or Serial to Serial TSSOP-16 Shift Registers
TSSOP-16RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LV165BEN
- Store part #
- C52145651
- Package / case
- TSSOP-16
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,340 in stock
#C52145651
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.90 | ₹159.50 |
| 50+ | ₹24.86 | ₹1,243.00 |
| 150+ | ₹21.84 | ₹3,276.00 |
| 500+ | ₹18.07 | ₹9,035.00 |
| 2,500+ | ₹16.39 | ₹40,975.00 |
| 5,000+ | ₹15.39 | ₹76,950.00 |
5 × ₹31.90
₹159.50
excl. GST
₹188.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJ74LV165BEN
₹159.50 for 5 + GST
Specifications
- Operating temperature
- -40℃~+125℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 1V~5.5V
- Output Type
- Complementary
- Series
- 74LV
- Number of Elements
- 1
- Propagation Delay
- 15ns@5V,50pF
- Features
- Asynchronous parallel load function
- Function
- Parallel or Serial to Serial
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Overview
CJ74LV165 is an 8-bit parallel-load or serial-input shift register with complementary serial outputs (Q7 and /Q7) at the last stage. All inputs feature Schmitt-trigger action, enabling the circuit to tolerate slow input rise and fall times.
Applications
- Increase the number of microcontroller inputs
Key features
- Wide operating voltage range: 1.0 V to 5.5 V
- 5.5 V tolerant I/O
- Power-down mode
- Operating temperature range: -40°C to +125°C
