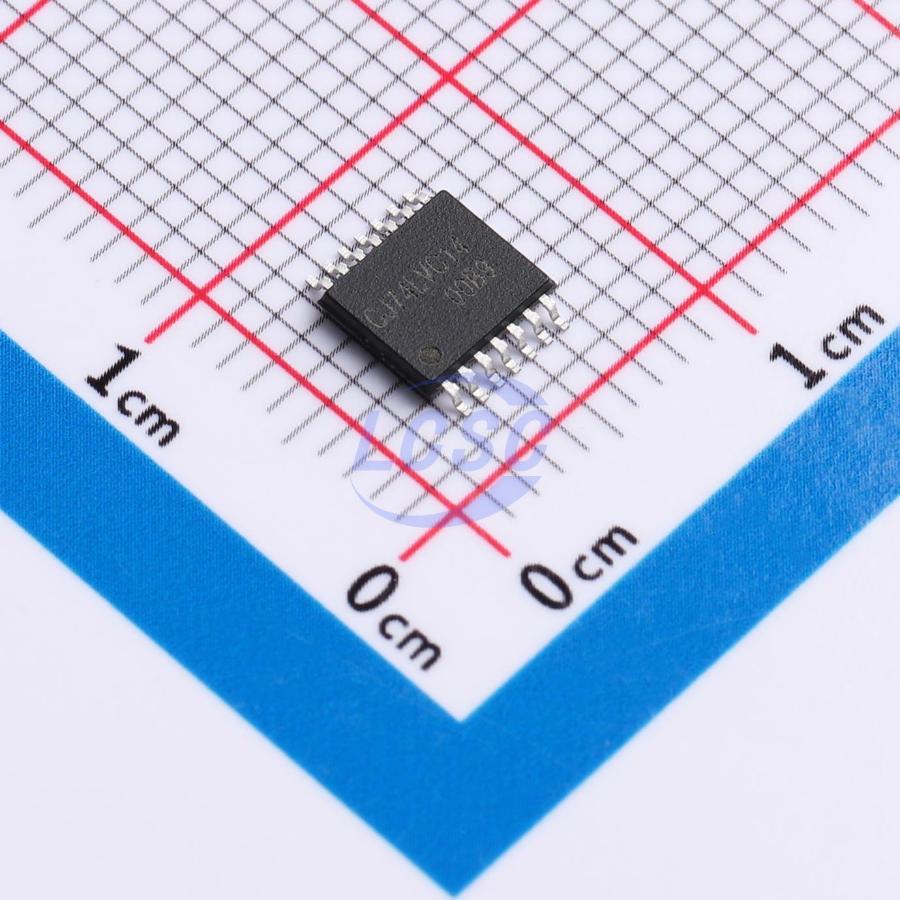

JSCJ

CJ74LVC14BDN

Schmitt trigger 1.65V~3.6V 12ns@3.6V,50pF 40uA 6 TSSOP-14 Gates and Inverters

TSSOP-14RoHSActive

Manufacturer: JSCJ
Manufacturer part #: CJ74LVC14BDN
Store part #: C52145662
Package / case: TSSOP-14
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,300 in stock

#C52145662

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹23.35	₹116.75
50+	₹18.19	₹909.50
150+	₹15.98	₹2,397.00
500+	₹13.23	₹6,615.00
2,500+	₹12.00	₹30,000.00
5,000+	₹11.26	₹56,300.00

Quantity (min 5, multiples of 5)

5 × ₹23.35

₹116.75

excl. GST

₹137.76 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

CJ74LVC14BDN

₹116.75 for 5 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74LVC
Voltage - Supply: 1.65V~3.6V
Output Logic Level - Low: 300mV;650mV;800mV;600mV
Propagation Delay: 12ns@3.6V,50pF
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.05V;1.65V;2.05V;2.25V;2V
Quiescent Current(Iq): 40uA
Number of Channels: 6

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.24 g

Overview

CJ74LVC14 provides six inverting buffers with Schmitt-trigger inputs. It converts slowly changing input signals into cleanly defined, bounce-free output signals. The switching points differ between positive-going and negative-going input transitions. The difference between the positive-going threshold VT+ and the negative-going threshold VT− is defined as the input hysteresis voltage VH. The inputs can be driven by 3.3V or 5V devices. This feature allows the device to be used as a level translator in mixed 3.3V and 5V applications.
