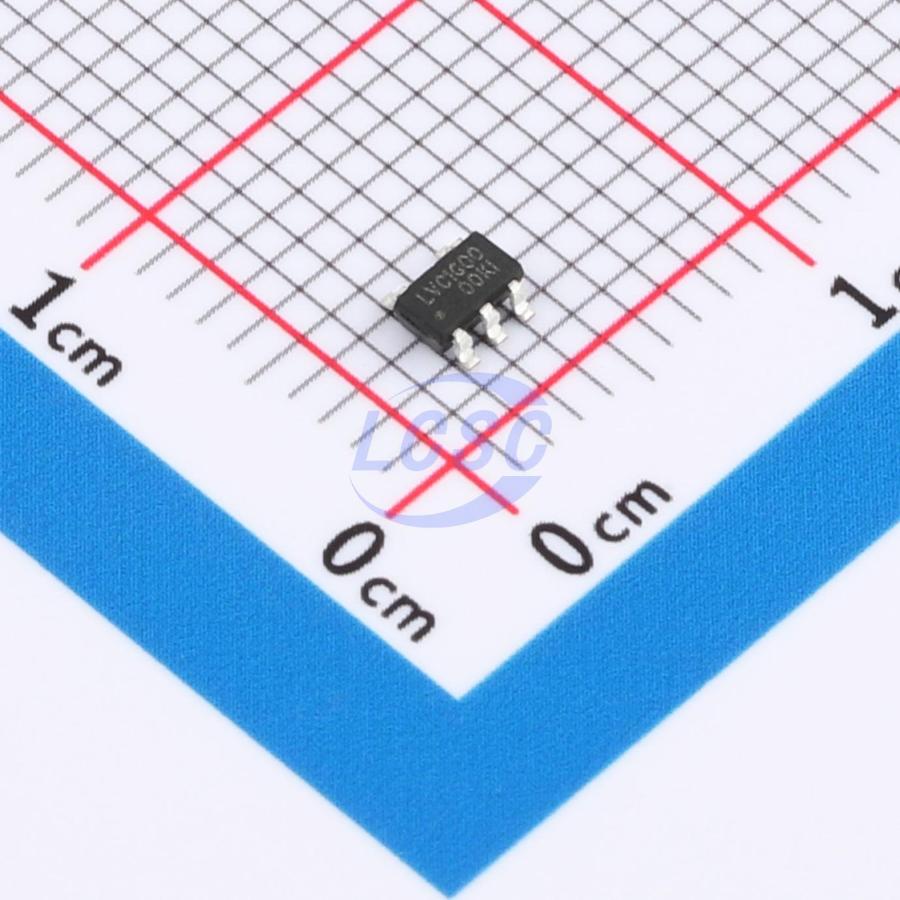

CJ74LVC1G00M5N
4uA 1.65V~5.5V 14.3ns@3V,50pF SOT-23-5L Gates and Inverters
SOT-23-5LRoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC1G00M5N
- Store part #
- C52145573
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,490 in stock
#C52145573
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.75 | ₹97.50 |
| 100+ | ₹7.69 | ₹769.00 |
| 300+ | ₹6.64 | ₹1,992.00 |
| 3,000+ | ₹5.86 | ₹17,580.00 |
| 6,000+ | ₹5.24 | ₹31,440.00 |
| 9,000+ | ₹4.93 | ₹44,370.00 |
10 × ₹9.75
₹97.50
excl. GST
₹115.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ74LVC1G00M5N
₹97.50 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 14.3ns@3V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.17 g
Overview
CJ74LVC1G00 provides a single 2-input NAND gate function. The inputs can be driven by 3.3V or 5V devices, enabling the device to be used in mixed 3.3V and 5V environments.
Applications
- AV receiver
- Audio dock
- Blu-ray player
- Embedded PC
- MP3 player
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- Output drive capability: ±24mA (Vcc=3.0V)
- CMOS low power consumption
- Inputs accept voltages up to 5V
- Operating temperature range: -40℃ ~ +125℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ74LVC1G38M5N#C52145609JSCJ · SOT-23-5L | JSCJ | SOT-23-5L | On request | Price on request | Quote |
