JSCJDatasheet (PDF)

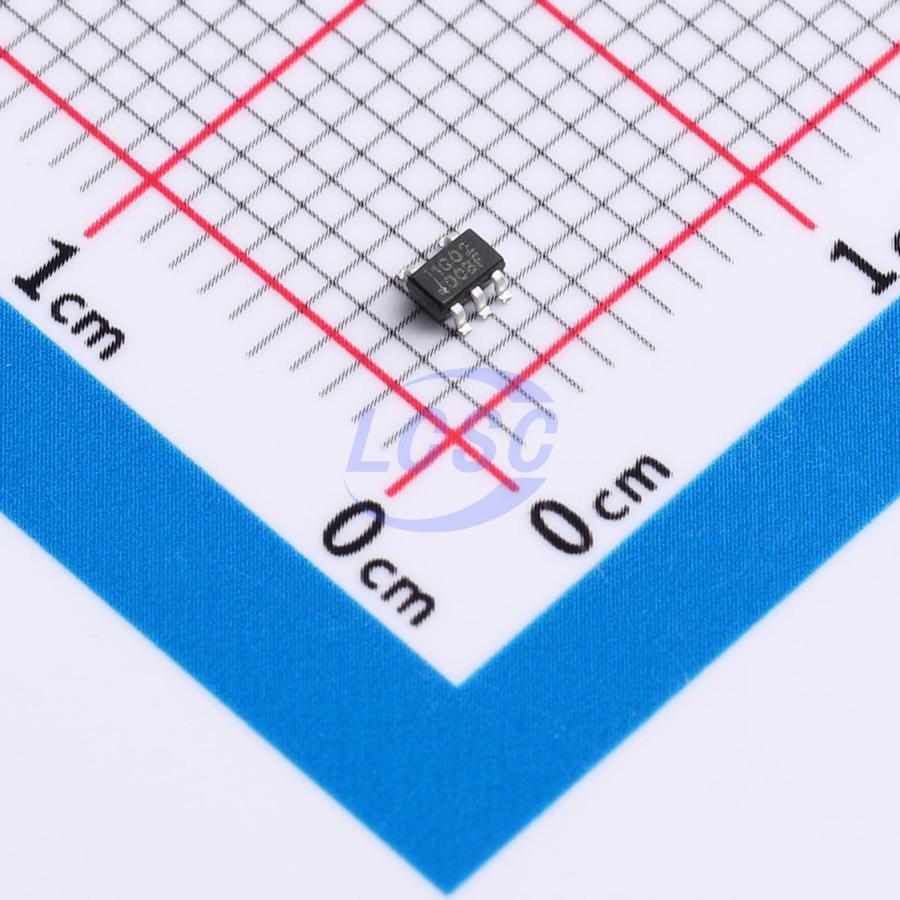

CJ74LVC1G02R5N
4uA 1.65V~5.5V 13.5ns@5.5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC1G02R5N
- Store part #
- C52145577
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,010 in stock
#C52145577
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.29 | ₹46.45 |
| 50+ | ₹7.28 | ₹364.00 |
| 150+ | ₹6.27 | ₹940.50 |
| 500+ | ₹5.52 | ₹2,760.00 |
| 3,000+ | ₹4.91 | ₹14,730.00 |
| 6,000+ | ₹4.62 | ₹27,720.00 |
5 × ₹9.29
₹46.45
excl. GST
₹54.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ74LVC1G02R5N
₹46.45 for 5 + GST
Specifications
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 2.3V;3.8V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 13.5ns@5.5V,50pF
- Output Logic Level - Low
- 550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.225 g
Overview
CJ74LVC1G02 provides a single 2-input NOR function. Its inputs can be driven by 3.3V or 5V devices, enabling the device to be used in mixed 3.3V and 5V voltage environments.
Applications
- AV Receivers
- Audio Docking Stations
- Blu-ray Players & Home Theaters
- Embedded PCs
- MP3 Players/Recorders
- Personal Digital Assistants
- Telecom/Server Power Supplies
- Solid State Drives
- Televisions
- Tablet PCs
- Video Analytics Servers
- Wireless Headsets, Keyboards & Mice
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Output drive capability: ±24mA (Vcc=3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Inputs accept voltages up to 5V
- Operating temperature range: -40℃ to +125℃
