JSCJDatasheet (PDF)

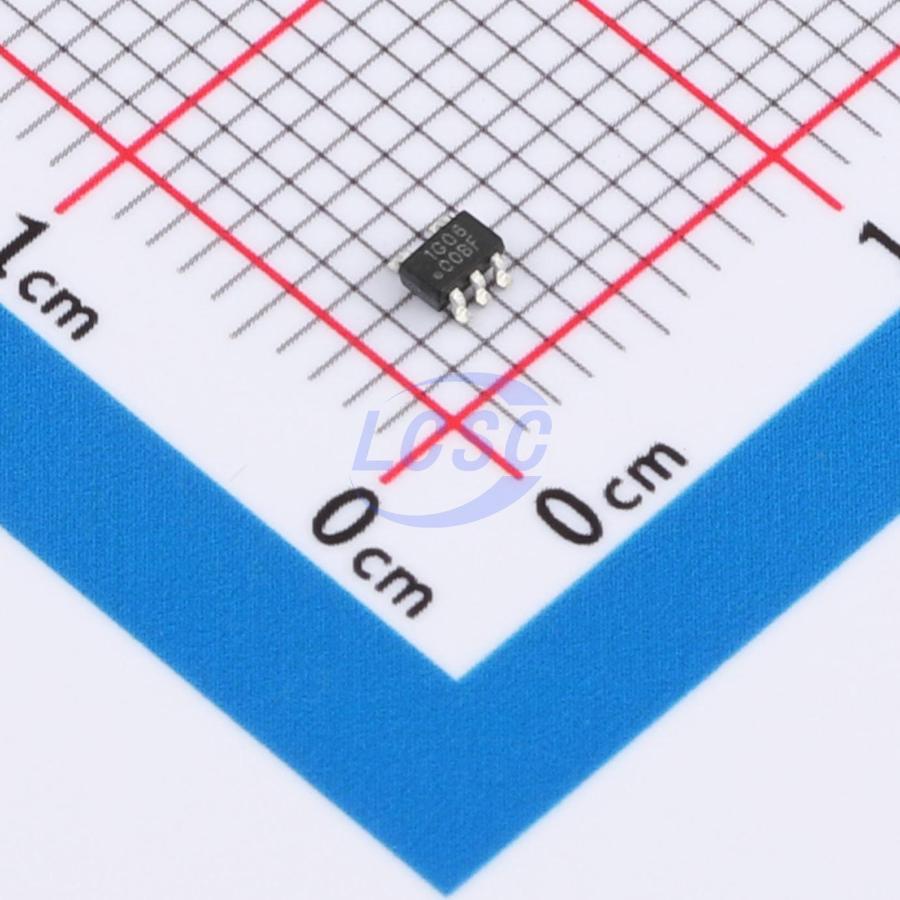

CJ74LVC1G06R5N
1.65V~5.5V 6ns@5V,50pF 4uA 1 SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC1G06R5N
- Store part #
- C52145585
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,015 in stock
#C52145585
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.39 | ₹46.95 |
| 50+ | ₹7.37 | ₹368.50 |
| 150+ | ₹6.35 | ₹952.50 |
| 500+ | ₹5.58 | ₹2,790.00 |
| 3,000+ | ₹4.97 | ₹14,910.00 |
| 6,000+ | ₹4.67 | ₹28,020.00 |
5 × ₹9.39
₹46.95
excl. GST
₹55.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ74LVC1G06R5N
₹46.95 for 5 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Propagation Delay
- 6ns@5V,50pF
- Features
- Power shutdown protection
- Input Logic Level - High
- 1.7V;2V
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 4uA
- Number of Channels
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.17 g
Overview
The CJ74LVC1G06 is an inverting buffer. Its input can be driven by 3.3V or 5V devices, allowing it to be used in mixed 3.3V and 5V environments. The device features an open-drain output, which can be connected with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
Applications
- Blu-ray players and home theater systems
- Desktop or laptop PCs
- Digital or internet radio players
- Digital camcorders
- Embedded PCs
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- ±24mA output drive capability (Vcc=3.0V)
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- Operating temperature range: -40℃ ~ +125℃
