JSCJDatasheet (PDF)

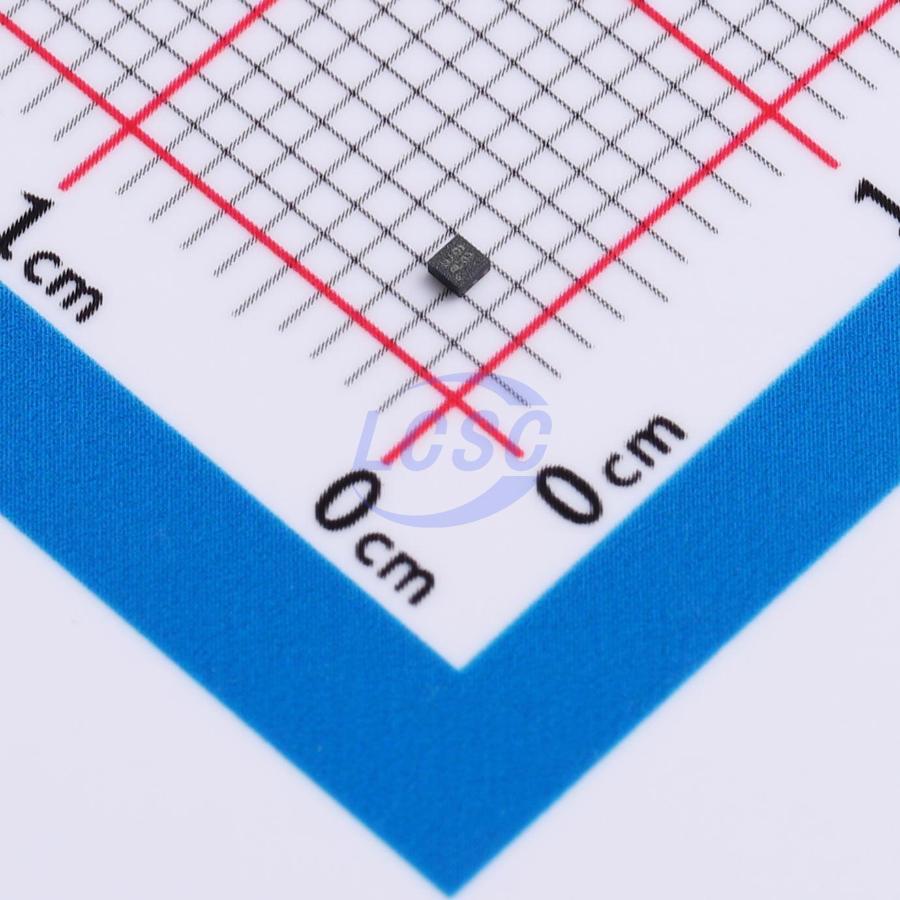

CJ74LVC1G08DKN
4uA 1.65V~5.5V 14.3ns@3.3V,50pF DFN-6L(1x1) Gates and Inverters
DFN-6L(1x1)RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC1G08DKN
- Store part #
- C52145592
- Package / case
- DFN-6L(1x1)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,470 in stock
#C52145592
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.88 | ₹54.40 |
| 50+ | ₹8.52 | ₹426.00 |
| 150+ | ₹7.34 | ₹1,101.00 |
| 500+ | ₹6.46 | ₹3,230.00 |
| 2,500+ | ₹5.76 | ₹14,400.00 |
| 5,000+ | ₹5.40 | ₹27,000.00 |
5 × ₹10.88
₹54.40
excl. GST
₹64.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CJ74LVC1G08DKN
₹54.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 14.3ns@3.3V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.155 g
Overview
CJ74LVC1G08 provides a single 2-input AND gate function. Its inputs can be driven by 3.3V or 5V devices, allowing it to be used as a level translator in mixed 3.3V and 5V applications.
Applications
- Active noise cancellation
- Barcode scanner
- Blood pressure monitor
- E-reader
- Embedded PC
Key features
- Wide supply voltage range: 1.65V to 5.5V
- Output drive capability: ±24mA (VDD=3.0V)
- CMOS low power consumption
- Inputs tolerant up to 5V
- Operating temperature range: -40°C to +125°C
