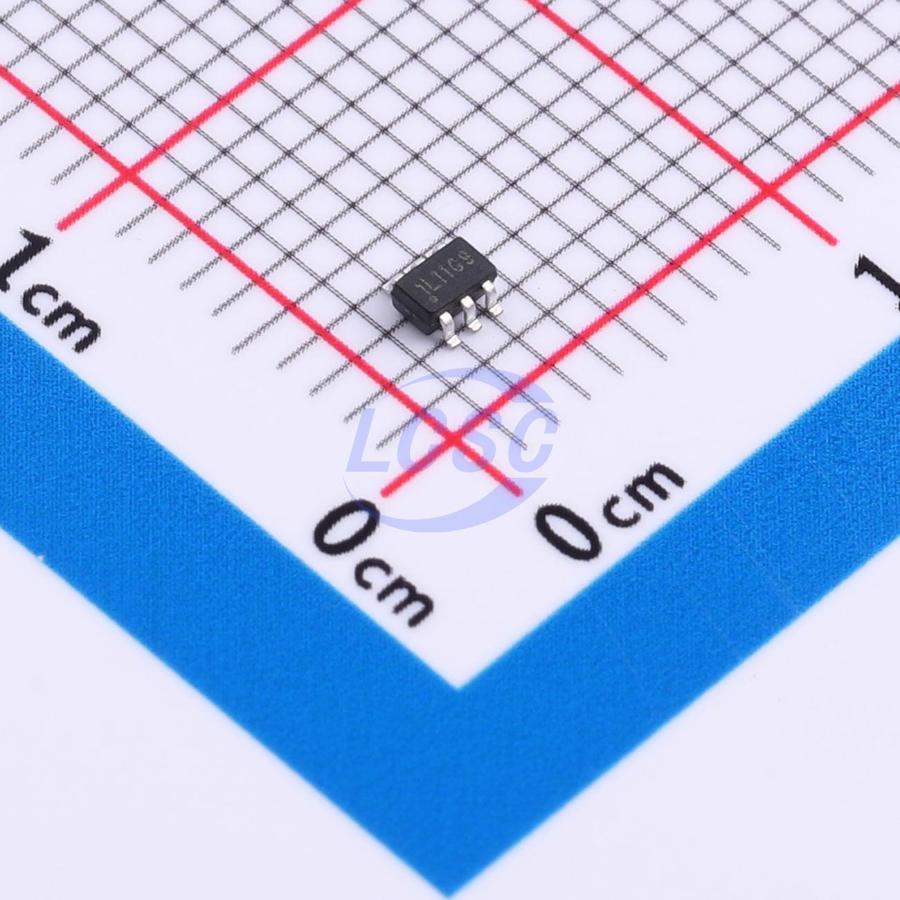

CJ74LVC1G11R6N
4uA 1.65V~5.5V 14.3ns@3.3V,50pF SOT-363 Gates and Inverters
SOT-363RoHSActive
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ74LVC1G11R6N
- Store part #
- C52145595
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,905 in stock
#C52145595
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.09 | ₹70.45 |
| 50+ | ₹11.05 | ₹552.50 |
| 150+ | ₹9.53 | ₹1,429.50 |
| 500+ | ₹8.37 | ₹4,185.00 |
| 3,000+ | ₹7.46 | ₹22,380.00 |
| 6,000+ | ₹7.00 | ₹42,000.00 |
5 × ₹14.09
₹70.45
excl. GST
₹83.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CJ74LVC1G11R6N
₹70.45 for 5 + GST
Specifications
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 2.3V
- Quiescent Current(Iq)
- 4uA
- Voltage - Supply
- 1.65V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;3
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 14.3ns@3.3V,50pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
CJ74LVC1G11 provides a single 3-input AND gate function. Its inputs can be driven by 3.3V or 5V devices, enabling the device to be used in mixed 3.3V and 5V voltage environments.
Applications
- Audio/video receivers
- DLP front projection systems
- Digital photo frames
- Digital radios
- Digital cameras
Key features
- Wide supply voltage range: 1.65V to 5.5V
- 5V tolerant inputs, compatible with 5V logic levels
- Output drive capability ±24mA (Vcc=3.0V)
- CMOS low power consumption
- Operating temperature range: -40°C to +125°C
