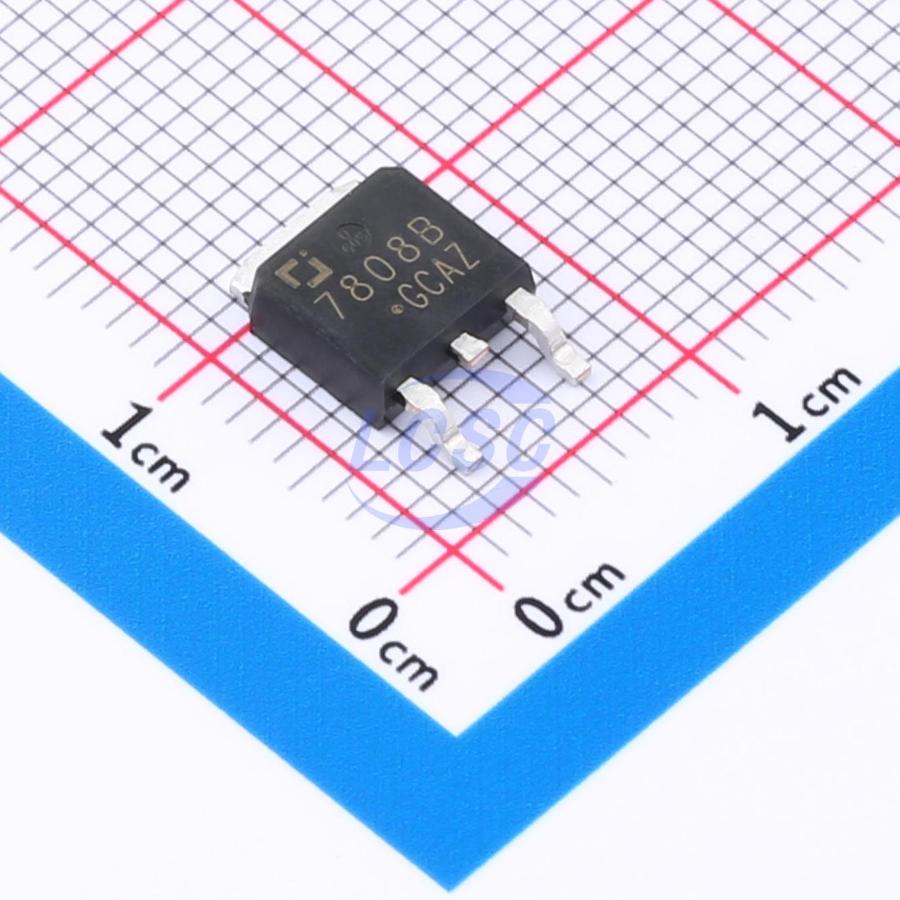

CJ7808B-TFN-ARG
8V Positive Fixed TO-252-2L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-252-2LROHS CompliantActive
Wide Input Voltage Three Terminal Positive Voltage Regulator
- Manufacturer
- JSCJ
- Manufacturer part #
- CJ7808B-TFN-ARG
- Store part #
- C20622093
- Package / case
- TO-252-2L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,415 in stock
#C20622093
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.13 | ₹110.65 |
| 50+ | ₹17.53 | ₹876.50 |
| 150+ | ₹15.56 | ₹2,334.00 |
| 500+ | ₹13.10 | ₹6,550.00 |
| 2,500+ | ₹12.00 | ₹30,000.00 |
| 5,000+ | ₹11.34 | ₹56,700.00 |
5 × ₹22.13
₹110.65
excl. GST
₹130.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
CJ7808B-TFN-ARG
₹110.65 for 5 + GST
Specifications
- Output Voltage
- 8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 28V
- Output Current
- 1A
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.367 g
Overview
The CJ7800B series is a group of three terminal positive voltage linear regulators with multiple fixed output voltages. Under the condition of good heat dissipation, it can provide output current up to 1A, and has the functions of internal current limit, short circuit protection, thermal shutdown protection and output transistor SOA protection, which make it relatively difficult to damage. Although designed as fixed voltage regulators without external components, these devices can be used with external components to obtain adjustable voltage and current. Therefore, the CJ7800B series is widely used as fixed voltage regulators, including local (on card) regulators, to eliminate noise and power distribution problems associated with single point regulation.
Applications
- AC Inventors
- DC Motor Drivers
- Household Electric Appliances
- HVAC Systems
- Industrial Power Supplies
- SMPS Post Regulation
- Solar Energy String Inventors
- Test and Measurement Equipment
Key features
- Available Fixed Output Voltage: 5.0V: CJ7805B 6.0V: CJ7806B 8.0V: CJ7808B 9.0V: CJ7809B 12V : CJ7812B 15V : CJ7815B
- Output Current: up to 1A at TJ = 25℃
- Output Voltage Tolerance at TJ = 25℃ : ±2% for Conventional Device ±1% can be Customized
- Operating Junction Temperature: -40~125℃
- Output Voltage Tolerances of ±4% over the Temperature Range
- Dropout Voltage: 2V@1A
- Power Supply Rejection Ratio: 70dB@120Hz (VOUT = 5.0V)
- Output Transistor SOA Protection
- Internal Current Limit
- Short Circuit Protection
- Thermal Shutdown Protection
